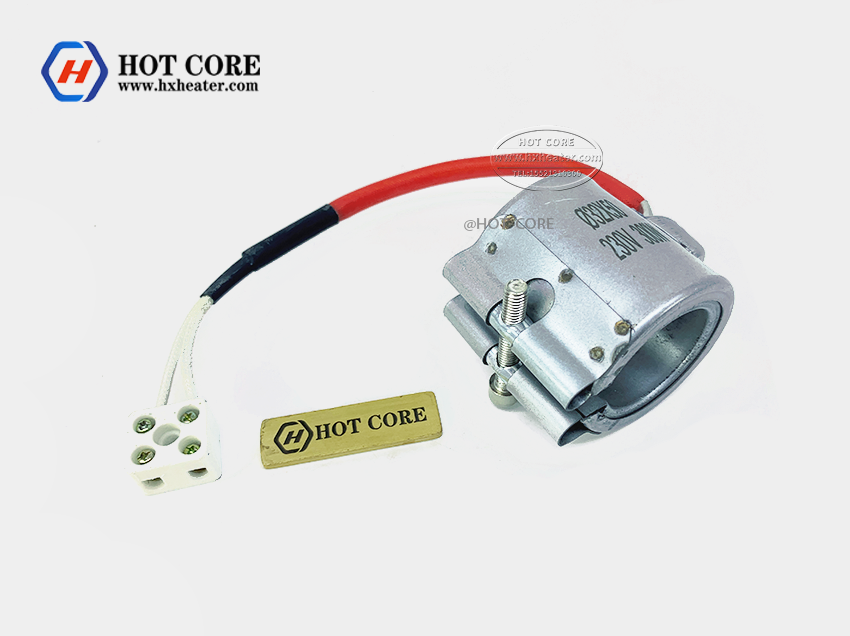

Electric Band Heater

Electric Band Heater Thanks to excellent heat transfer and uniform heating of the entire surface, the Electric band heater has become a popular and widely used solution. Suitable for heating components in plastic molding, plastic granulators, casting machines, etc.

Detalii despre produs:

Electric Band Heater

Thanks to excellent heat transfer and uniform heating of the entire surface, the Electric band heater has become a popular and widely used solution. Suitable for heating components in plastic molding, plastic granulators, casting machines, etc.
Our Electric band heaters are designed and manufactured according to the highest quality standards to ensure efficient and reliable operation.
Electric band heaters can be customized to specific customer needs.
Caracteristici
1. Excellent heat exchange with the cylinder
2. Heating uniformity
3. Long service life
4. Easy installation
5. High mechanical resistance

Key technical indicators
Conditions of Use: Ambient temperature -20 ~ + 60 ℃
Leakage Current: <0.5mA
Rezistență la izolare: ≥ 5M
Ground resistance: <0.1
Voltage resistance: No electrical breakdown for 1 minute at 1500V
Temperature resistance: 500-800 ℃
Power Deviation: + 5%-10%

Key technical indicators
Conditions of Use:
Ambient temperature -20 ~ + 60 ℃
Leakage Current:
<0.5mA
Rezistență la izolare:
≥ 5M
Ground resistance:
<0.1
Voltage resistance:
No electrical breakdown for 1 minute at 1500V
Temperature resistance:
500-800 ℃
Power Deviation:
+ 5%-10%
Technical specifications
* Specific wattage up to 4W/cm2
* Operating temperature up to 320 °C
* Internal sheet made of steel treated with high thermal conductivity
* External sheet made of stainless steel AISI 430 resistant to high temperatures
* Resistive band made of Ni-Cr 80/20
* Insulation made of pure mica for high temperatures
* Standard thickness of heater 4 +/- 0.5 mm
* Glass fiber insulated feeder cable with pure nickel or copper-nickel conductor, covered by a metal braid (with built-in ground wire) External protectionoperating temperature 320 °C, peak 350 °C

Please Specify The Following When Ordering
1. Electric band heater inner diameter (mm) and length (mm)
2. Heater thickness
3. Terminal length (maximum and minimum) and distance of terminal length
4. Cooling tube diameter, length and distance between them.
5. Voltage and power density
6. Gap between two sheets (if applicable)
7. Wiring type and location
8. Whether a blower is required
9. If necessary, the content of the stamping
10. Order quantity
11. Delivery date
