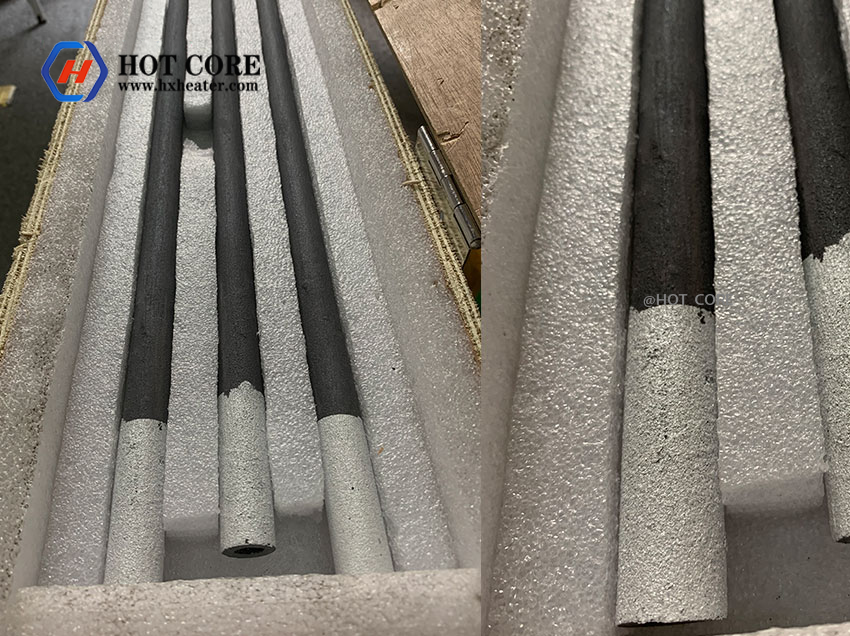

Silicon Carbide Heating Rod
silicon carbide
Silicon Carbide Heating Rod
1.Due to the use of silicon carbide, with high temperature resistance, resistência à alta temperatura, oxidation resistance, corrosion resistance, fast temperature rise, long life, high temperature deformation, easy installation and maintenance features.
Good chemical stability.
Silicon Carbide Heating Rod
2.Hard and brittle texture, strong thermal shock resistance, high temperature is not easy to deformation
3.Silicon carbide has good chemical stability and acid resistance.
It is highly alkaline at high temperatures.
Standard size mission silicon carbide heating element.
| Diameter | Heating zone Length | Cold zone Length | Overall length | Range of resistance |
| 14milímetros | 100-500milímetros | 150-350milímetros | 400-1200milímetros | 0.7-5.6 ohms |
| 16milímetros | 200-600milímetros | 150-350milímetros | 500-1600milímetros | 0.7-4.4 ohms |
| 18milímetros | 200-800milímetros | 150-400milímetros | 500-1600milímetros | 0.7-5.8 ohms |
| 20milímetros | 200-800milímetros | 200-600milímetros | 600-2000milímetros | 0.6-6.0 ohms |
| 25milímetros | 200-1200milímetros | 250-700milímetros | 700-2600milímetros | 0.4-5.0 ohms |
| 30milímetros | 300-2000milímetros | 250-800milímetros | 800-3600milímetros | 0.4-4.0 ohms |
| 35milímetros | 400-2000milímetros | 250-800milímetros | 900-3600milímetros | 0.5-3.6 ohms |
| 40milímetros | 500-2700milímetros | 250-800milímetros | 1000-4300milímetros | 0.5-3.4 ohms |
| 45milímetros | 500-3000milímetros | 250-750milímetros | 1000-4500milímetros | 0.3-3.0 ohms |
| 50milímetros | 600-2500milímetros | 300-750milímetros | 1200-4000milímetros | 0.3-2.5 ohms |
| 54milímetros | 600-2500milímetros | 300-750milímetros | 1200-4000milímetros | 0.3-3.0 ohms |
How to Order Mission SiC heating element.
Silicon Carbide Heating Rod
1. Choose the shape you need,Single Spiral etc.
2. Heating Zone Lengh (HZ )
3. Cold Zone Lengh(CZ)
4. Overall Length (OL)
5. Resistance you need.
Order Sample: U-type, HZ200mm, CZ150mm, OL350mm, Resistance 0.4ohms
SiC heating element is widely used in high temperatue furnaces, It can be used in air, vacuum and other protection gase enviroments.
