Product Description

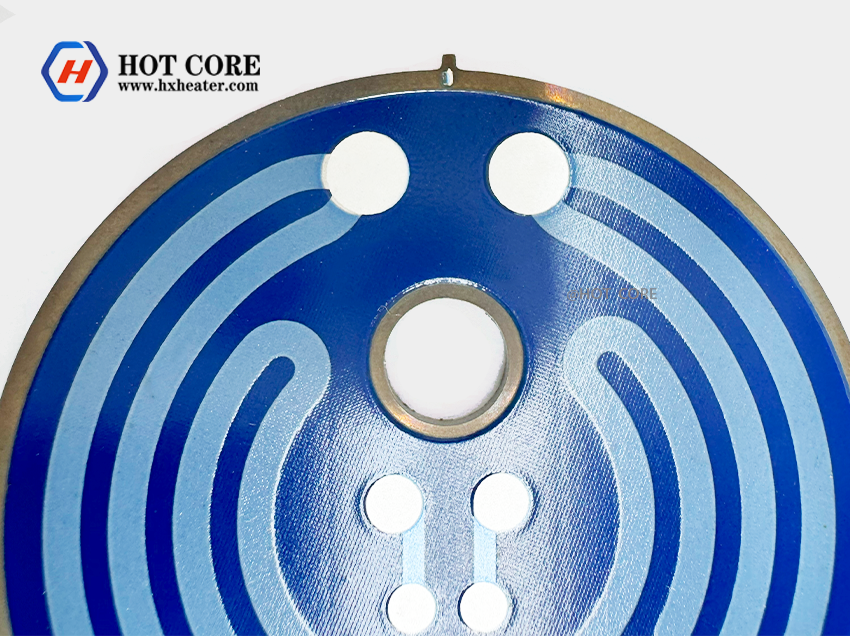

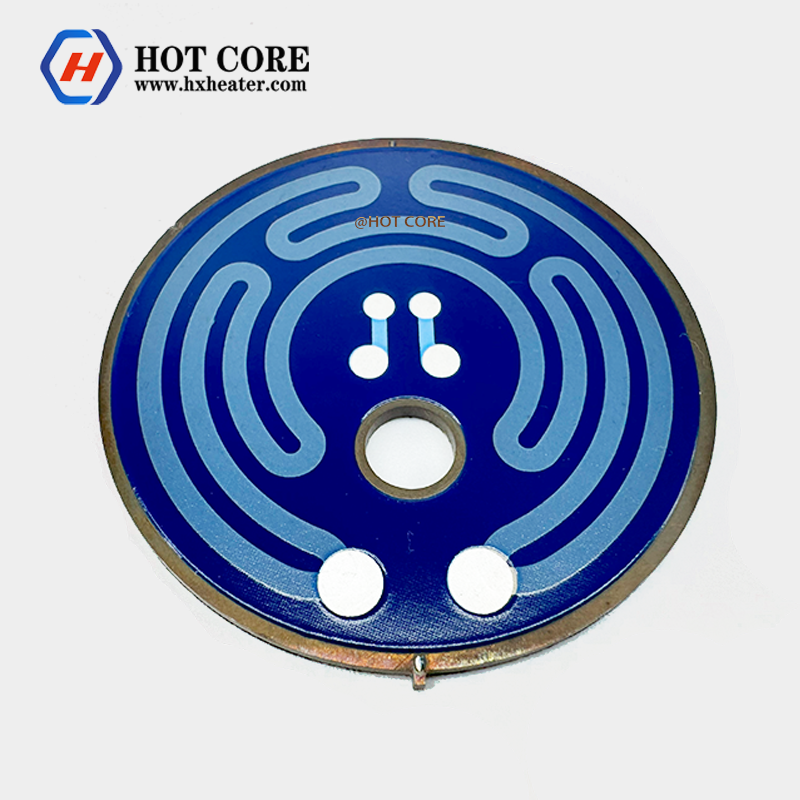

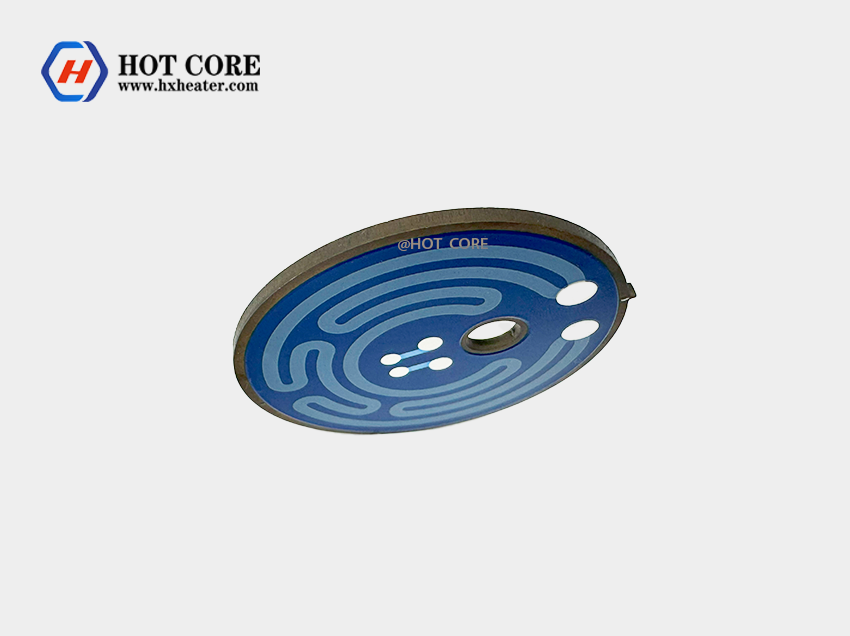

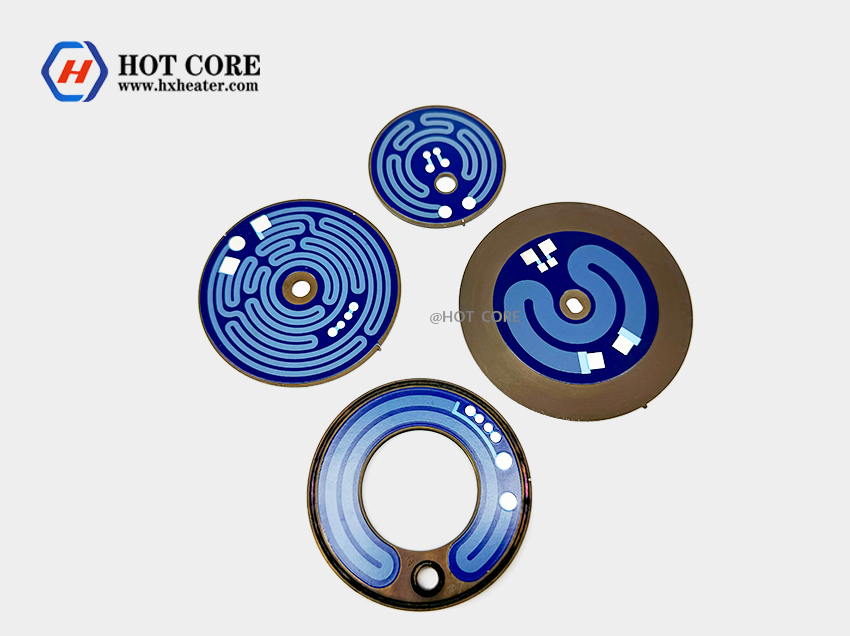

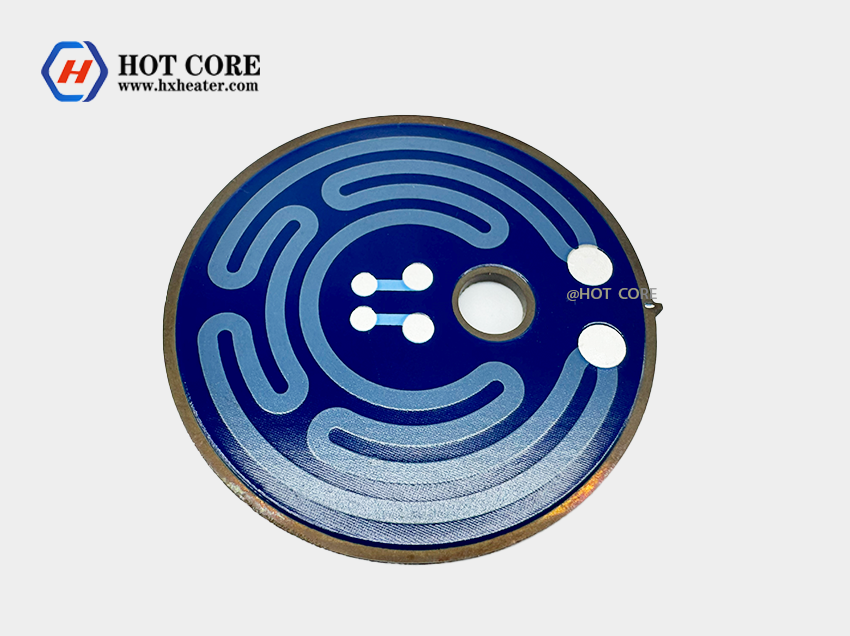

Thick Film Kettle Heater Element
Thick film kettle heater element is a new type of element that uses the film net printing technique to print different materials such as insulated medium, heating resistance, conductor, glass glaze on the stainless motherboard, through high temperature sintering. It is widely applicable to thermal pot, coffee pot, water boiler, hair dressing board/panel, humidifier, etc.
Features:
1. The temperature rises quickly, and the temperature fluctuation is small.
2. The technology is mature. The yield rate reaches 99%.
3. Using new non-metallic materials, suitable for bonding stainless steel plates, reliable, stable, lead-free and non-toxic.
4. Using special electroplating materials, with strong corrosion resistance and easy to clean. It is polished and has an elegant appearance.
5. Using spray technology, the slurry integrates a hard and dense circuit layer. After three-layer sintering (850°C), it is not easy to scrape or fall off and has a long service life.
6. Directly welded to the stainless steel plate, the product is easy to install, and the connection device is safe and stable.
7. It adopts double-sheet metal patent technology, stable control, and the service life is more than 100,000 times.
Technical parameter
1. Flexible design. The shape can be determined according to the design.
2. The power can reach more than 3000W.
3. The power density is 5-60W/cm². When there is no radiation effect, the lowest power density is 5W/cm² and the highest can reach 60W/cm².
4. Good insulation effect, can withstand up to 3750V. And the design standard is 1500V to ensure the safety of electricity.
