Finned Tube Heater
Description
Technical Parameters

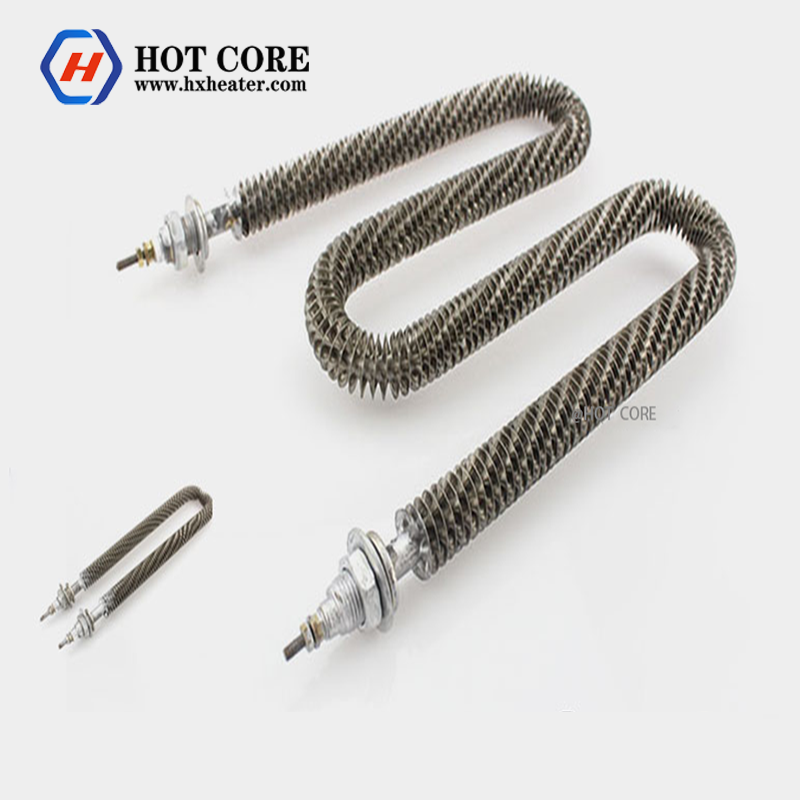

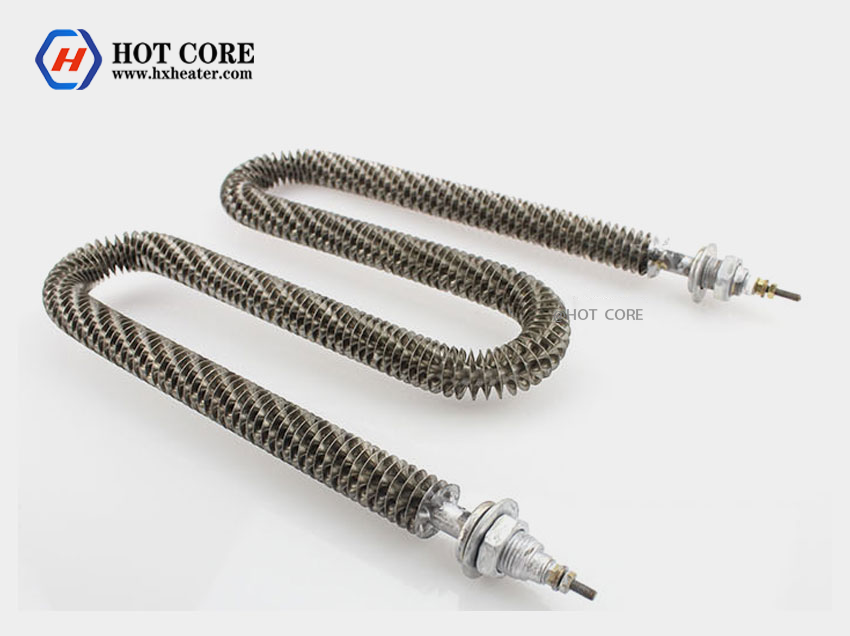

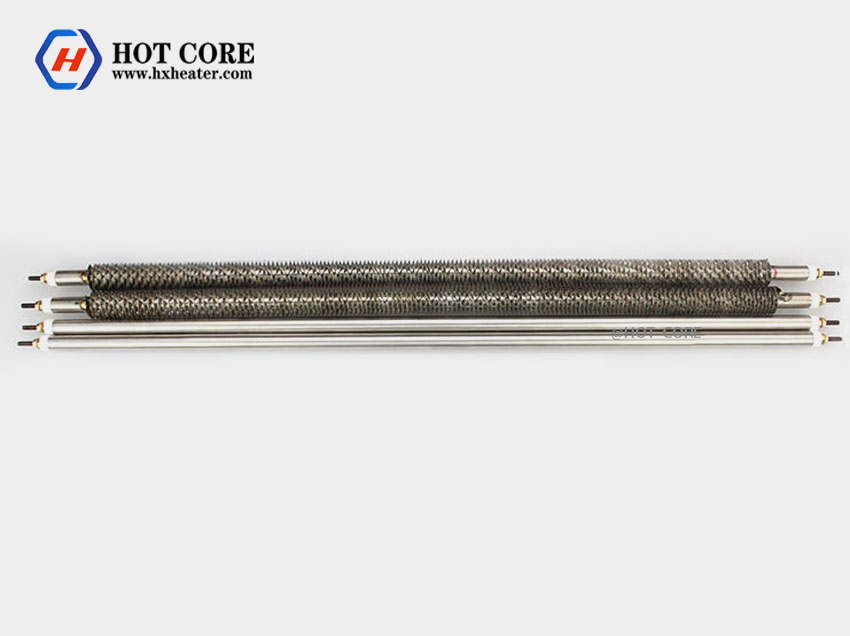

As one of industrial heaters, industrial heaters is most versatile and the best suited solutions to a large number of applications.In applications where tubular heaters are exposed to forced convection, placing fins around tubular heaters increases their surface area and thus improves their heat transferring capacity. Finned tube heater , compared to regular tubular heaters,run at lower surface temperatures for the same watt densities when placed in identical air streams.
These heating elements have a strong outer sheath to help protect the heater from physical stress and uses high quality alloys to allow efficient heat transfer from resistance coil to your heating medium.
Cechy:
It is most widely used in industrial heaters;
* Mild Steel sheath models are suitable for operating temperatures to 500c;
* Stainless steel sheath models are suitable for operating temperatures to 700c;
* High temperature nickel chromium resistance wire;
* Full brazed wound fin;
* Standard and custom options available.
Specyfikacja:
Specyfikacja:
| Tube Material | Fin Material | Diameter | Fin Height | Fin Thickness | Fin Pitch |
| SS304/316/321/Incoloy | S.Steel / mild Steel | Φ6.7 | 3-5 | 0.3-0.4 | 3-5 |
| SS304/316/321/Incoloy | S.Steel / mild Steel | Φ8 | 3-5 | 0.3-0.4 | 3-5 |
| SS304/316/321/Incoloy | S.Steel / mild Steel | Φ9 | 3-5 | 0.3-0.4 | 3-5 |
| SS304/316/321/Incoloy | S.Steel / mild Steel | Φ10 | 5-7 | 0.3-0.4 | 3-7 |
| SS304/316/321/Incoloy | S.Steel / mild Steel | Φ12 | 5-7 | 0.3-0.4 | 3-7 |
| SS304/316/321/Incoloy | S.Steel / mild Steel | Φ14 | 5-10 | 0.3-0.4 | 3-7 |
| SS304/316/321/Incoloy | S.Steel / mild Steel | Φ16 | 5-10 | 0.3-0.4 | 5-10 |
| SS304/316/321/Incoloy | S.Steel / mild Steel | Φ20 | 5-10 | 0.3-0.4 | 5-10 |
Common specification:
