제품 설명

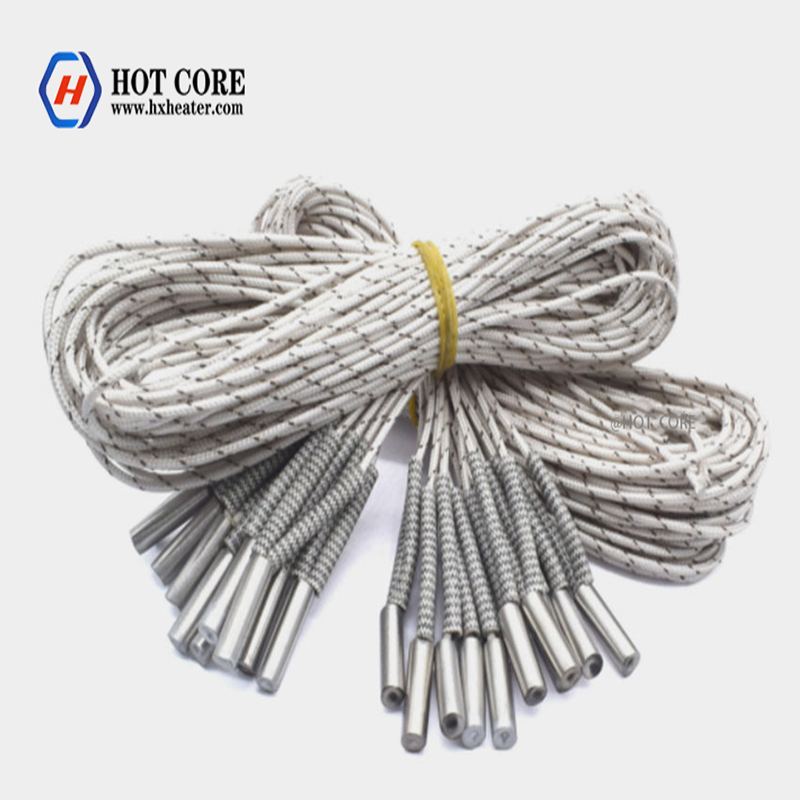

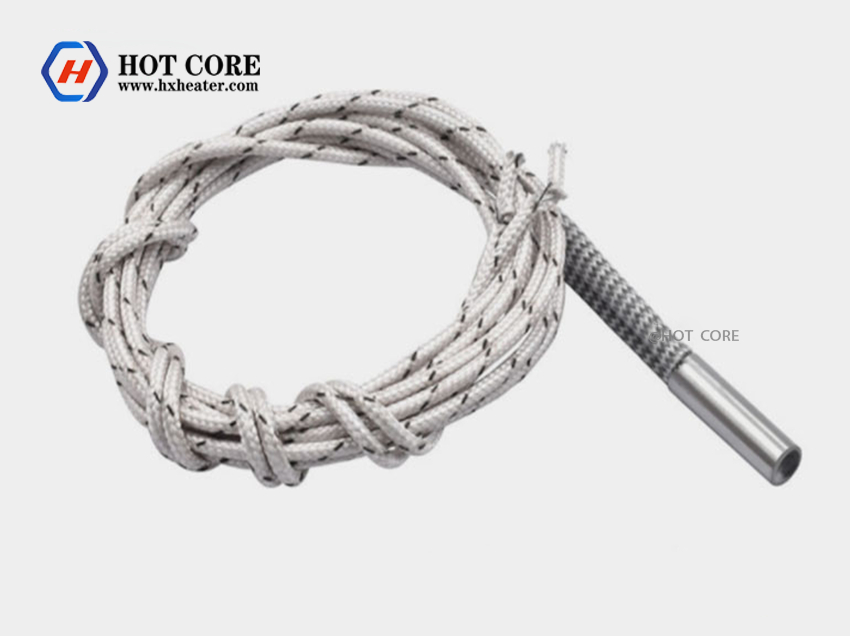

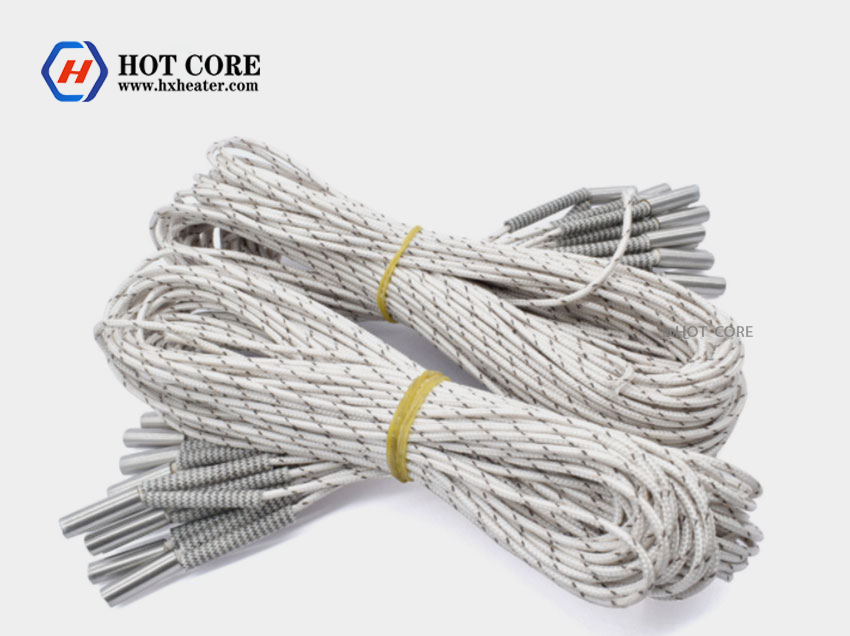

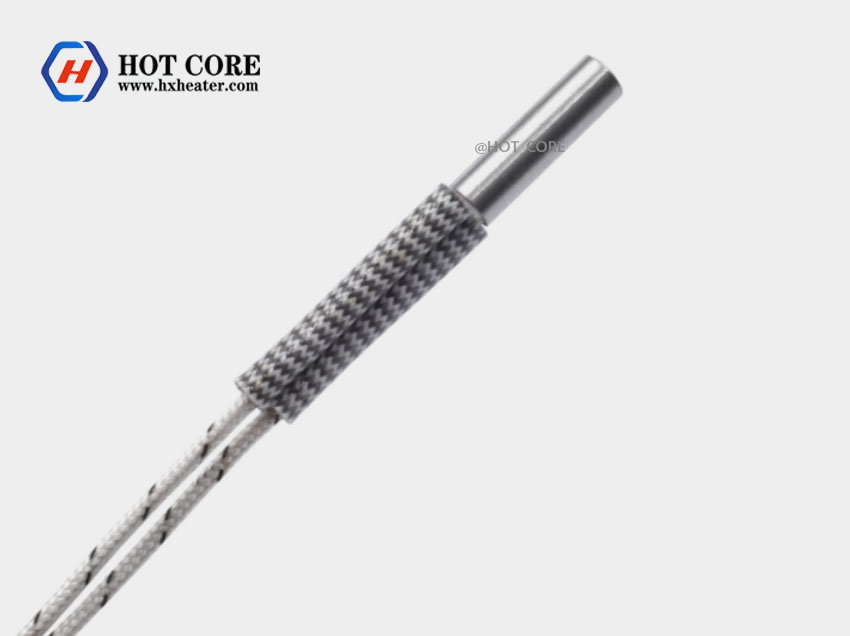

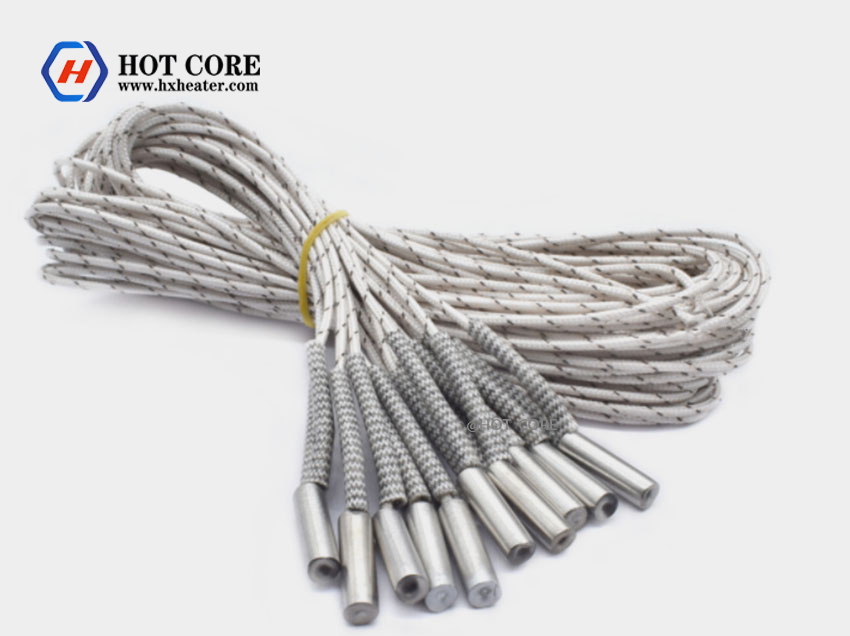

The typical structure of a small cartridge heater(the most popular structure) is generally composed of 5 parts: insulator, sealing material, lead-out rod, filler, 가열선, metal sheath, and terminal. The number of coils varies depending on the power. and provide a great uniform distribution of heat, which considerably increases the long life of the heater as well as prevents the oxidation of the heater wire even at high temperatures.
The manufacturing process of cartridge heater is to thread the spiral heating wire into the steamless steel tube, copper tube or aluminum tube, Filling of the gap with an insulating and thermally conductive oxidizing medium such as crystalline magnesium oxide powder(alumina or clean quartz sand can also be used) by means of a multi-tube filling machine.Then use a shrinking machine to reduce its diameter to make the oxide medium more compact. Through this technical process, the heating value of the actual area of the single-head tube is increased. Compared with the electric heating element with the same large amount of heat, the tubular electric heating tube can save 5% of the electric heating material, and the thermal efficiency can reach more than 90%.
Technical Details:
30WCM2를 초과하지 않는 열 강도 (타당한)
힘은 치수에 따라 다릅니다
전류의 탈출 (추울 때) <= 0.1ma a 242 다섯.
격리 (추울 때) 5 최소 옴 500 와트 최소
유전체 강도 1500V. 1/그들 자신
작업 온도 750ºG 최대.
길이의 공차 +/-1.5%
직경의 내성 -0.01 에이 -0.06 mm
connexion의 컷의 내성 +/-15 MLM
전력 공차 (승) 5 % – 10 %
추운 지역은 길이와 직경 5-25mm에 따라 다릅니다
