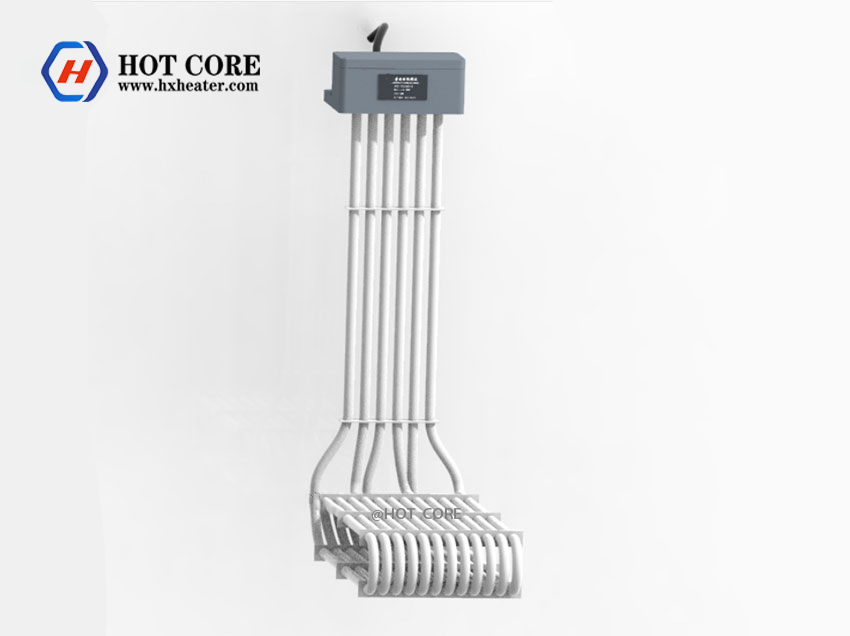

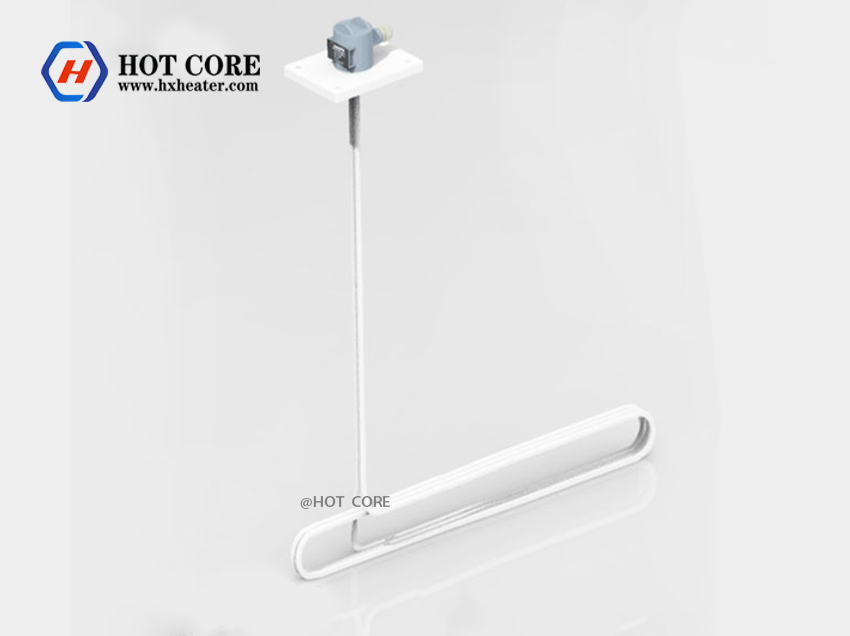

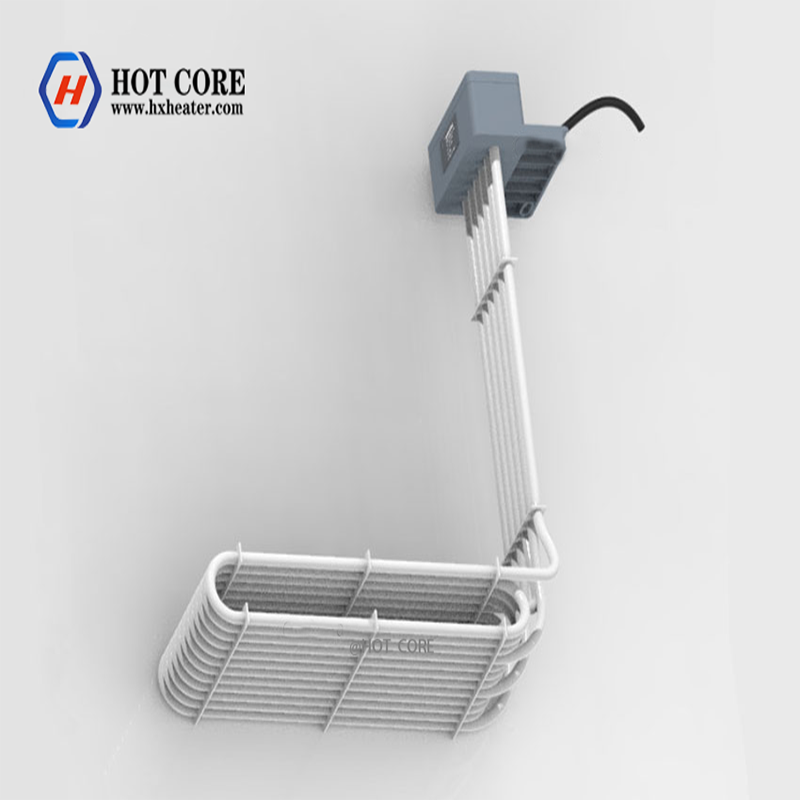

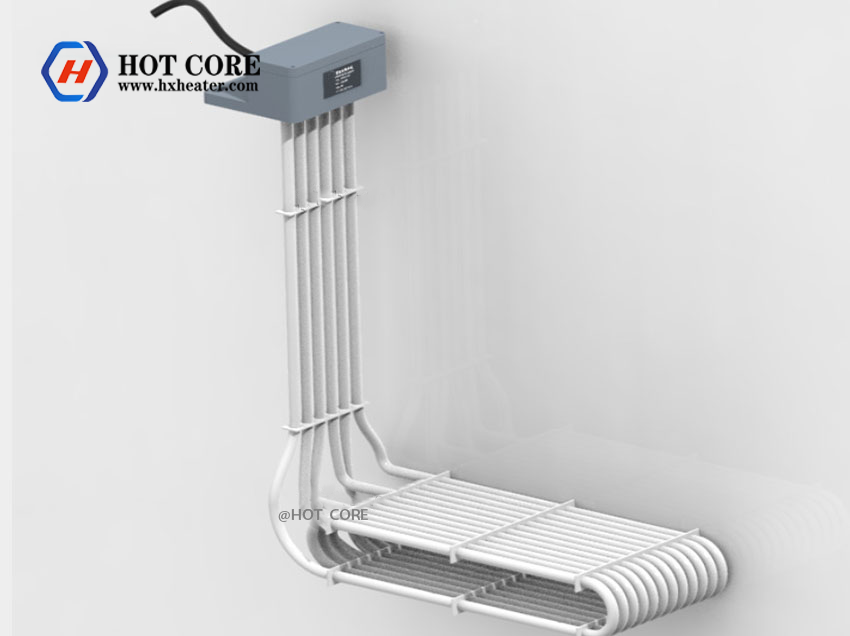

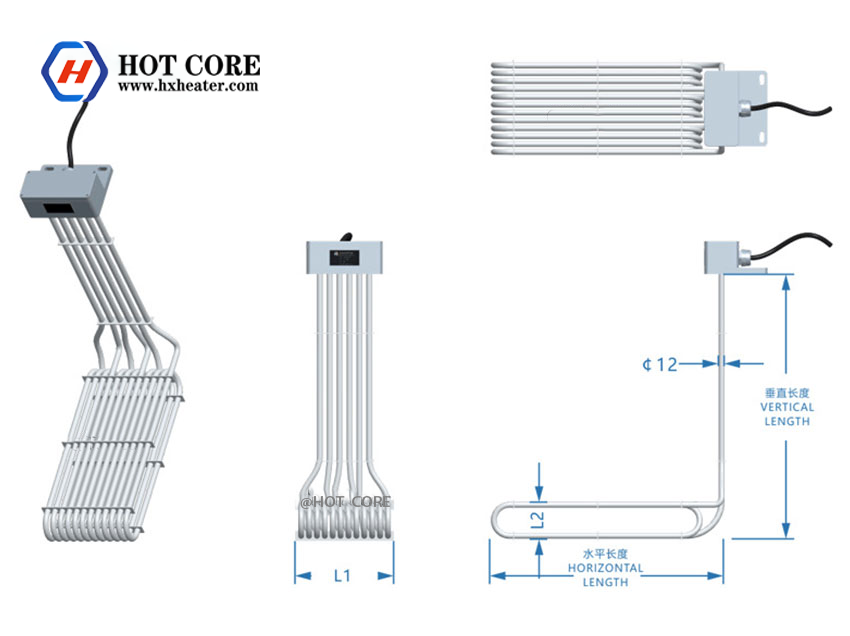

Ptfe immersion heater：
Voltage 220V 380V（Other voltages can be customized）
Tube Diameter φ8φ10/φ12/φ14/，Other diameters can be customized
Shape Customized
Application Heat the acid bath
Lead Time 10 Days above
MOQ 1Pcs
The PTFE Immersion heaters have the following advantages used in the Chemical and Plating Industry:
1-Excellent chemical resistance: suitable for all kind of acid, alkaline, anodizing and pickling solutions
2-Various structural forms, such as spiral type, L type, U type, W type, mosquito coil type, combined type and so on.
3-Electric heater
heating core is made of stainless steel (SUS316 또는 SUS304) and outer casing
made of Teflon tube (ptfe). It has strong corrosion resistance and is suitable
for all kinds of corrosive liquid heating.
4-긴 서비스 수명: Low watt density design (10 watt/ square inch, 1.5 w/cm2) for long service life.
5-Safety Grounded and Thermal protection: Replaceable thermal protectors is from 80°C to 105°C for solutions.
6-.We have custom-built heaters and can make any Watts, voltages with the size according to customers’ requirement
7-OPTIONS :(consult Our FACTORY for any installation)
8-We recommend temperature controls and level controls for use with this immersion heater.
Order instruction
1.show us the draft artwork
2.the liquid is alkalinity or acid?
3.what’s the highest temperature of the liquid 4.how about the size of the inside dimension of tank body?
5.what’s the height of the liquid when it is the lowest?
6.how long is the electrical line?
7.how about the watts?
8.Is the input voltage 220V or 380V?
