Oven Infrared Ceramic Heater
Oven infrared ceramic heater
Product Introduction
Ceramic infrared heater panel use conductor containing more than 95% silicon and quartz glass hich can resist 1800°C as main material. They create infrared radiation after chemical reaction. The spiral Cr20Ni80 resistance wire is cast into the conductor. With its advantages in thermal efficiency, radiation, safety and energy conservation, infrared ceramic heaters are widely used in plastics, chemicals, light industrial, electronic, pharmaceutical, food and other industries. It’s mainly used for vacuum forming, curing paint drying, bakery, medicine dehydration, and medical care.
Dimension list
Picture Size Wattage(Can be customized)
Curved type 240*60mm 150W 250W 300W 400W 650W 750W 800W 1000W
120*60mm 400W 500W 650W 800W 1000W
245*80mm 300W 400W 500W 650W 800W 1000W
240*80mm 300W 400W 500W 650W 800W 1000W
60*60mm 150W 200W 250W 400W 500W
Flat type 240*60mm 250W 400W 500W 650W 800W 1000W
245*60mm 250W 400W 500W 650W 800W 1000W
120*60mm 250W 400W 500W 650W
80*80mm 250W 400W 500W 650W 800W 1000W
60*60mm 150W 250W 400W 500W
Color White, black, yellow, pink
Feature:
1. Electric heating wire: imported Swedish Kanthal electric heating wire, German BGH electric heating wire, electric heating wire is Ni80, cr20, nickel-chromium alloy.
2. Ceramic powder: special ceramic powder imported from Taiwan for high quality industrial grade high temperature resistance.
3. Glaze water: It adopts special high temperature resistant glaze water of industrial high temperature special secret formula of Institute of Ceramics of Chinese Academy of Sciences. The temperature can reach 800 °C,It is not easy to deglaze and does not crack.
4. 열전대: Omega imported thermocouple
5. Warranty period: 2-3 years
Application:
1.Thermoforming
2.Vacuum forming
3. Curing extruded parts
4.Drying Ceramic
5.Drying dyed/printed fabric
6.Heating bonded/painted/plastic

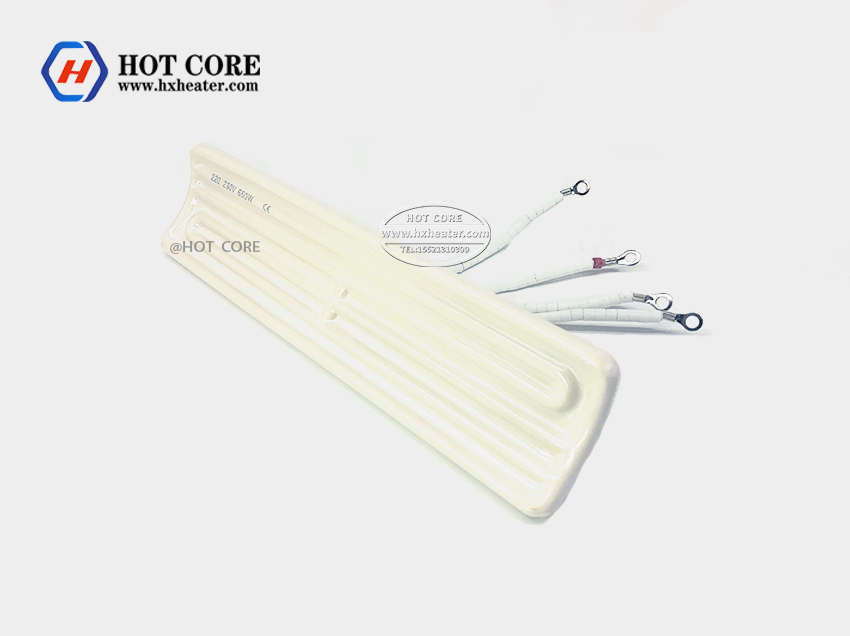

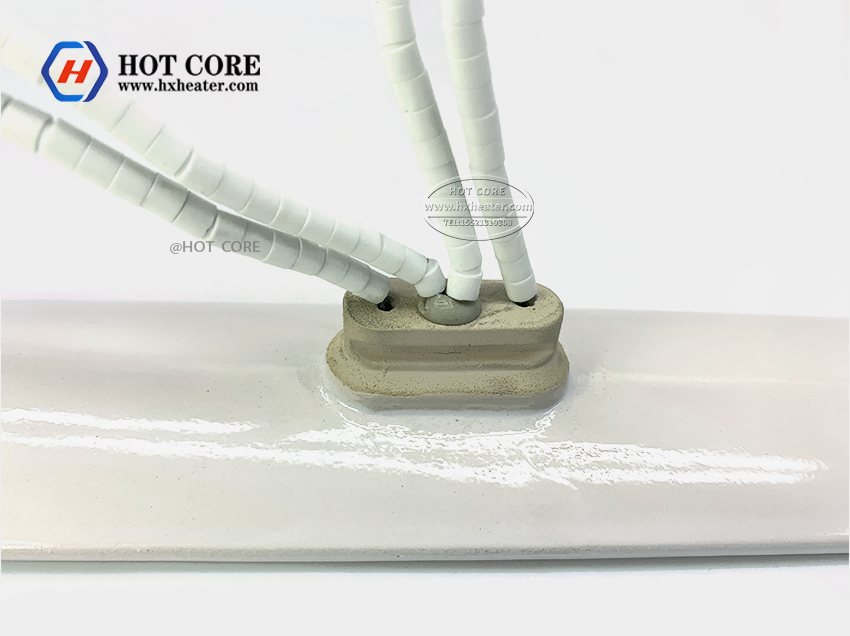

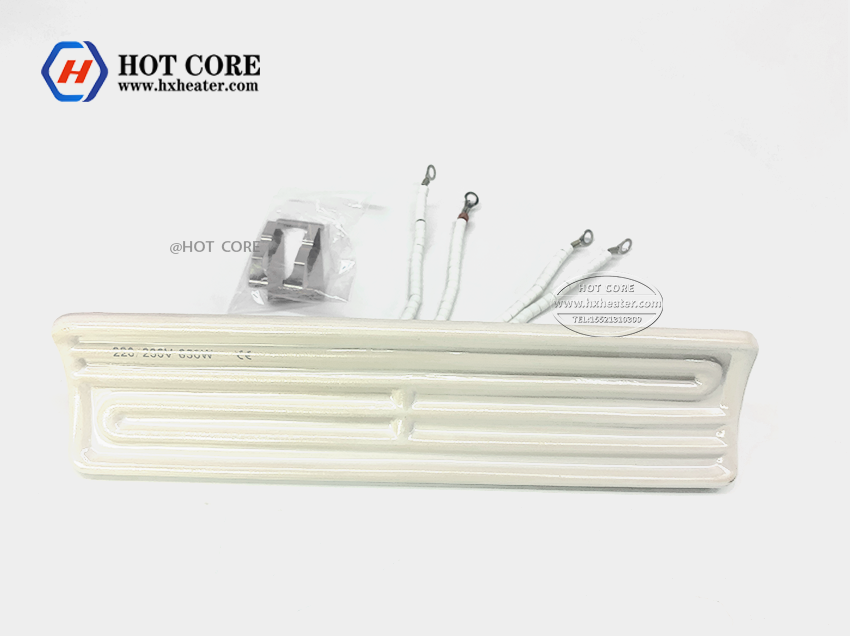

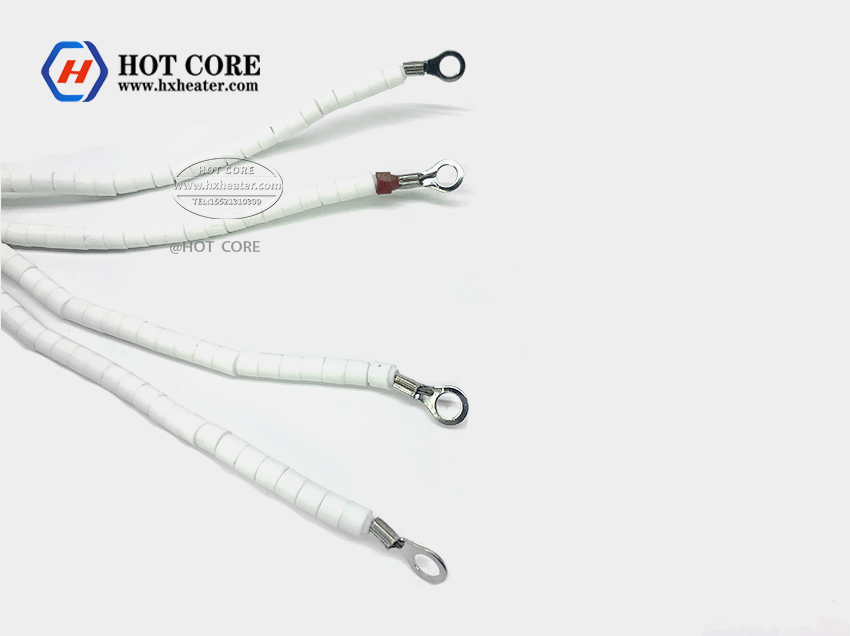

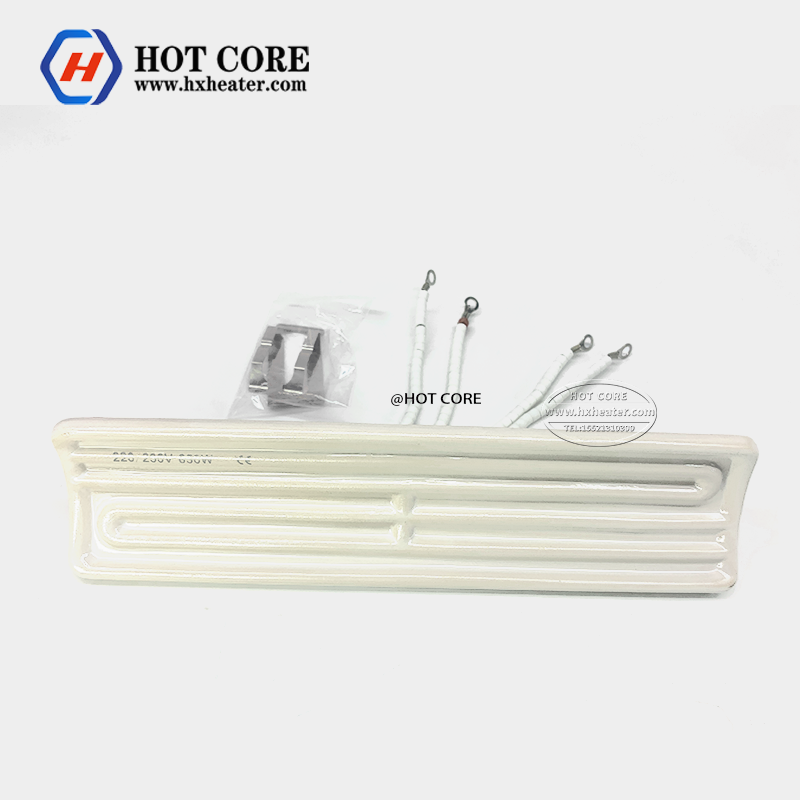

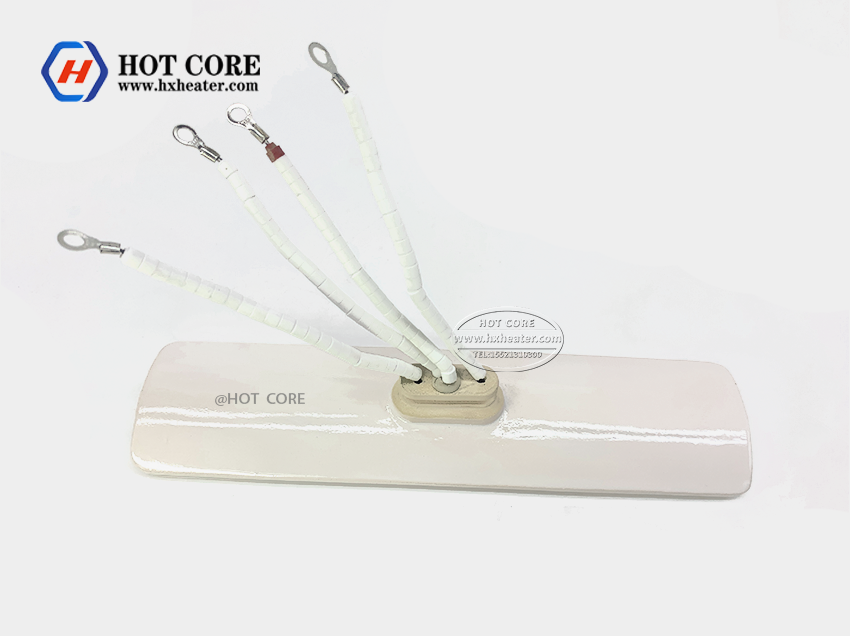

Product Show
