제품 설명

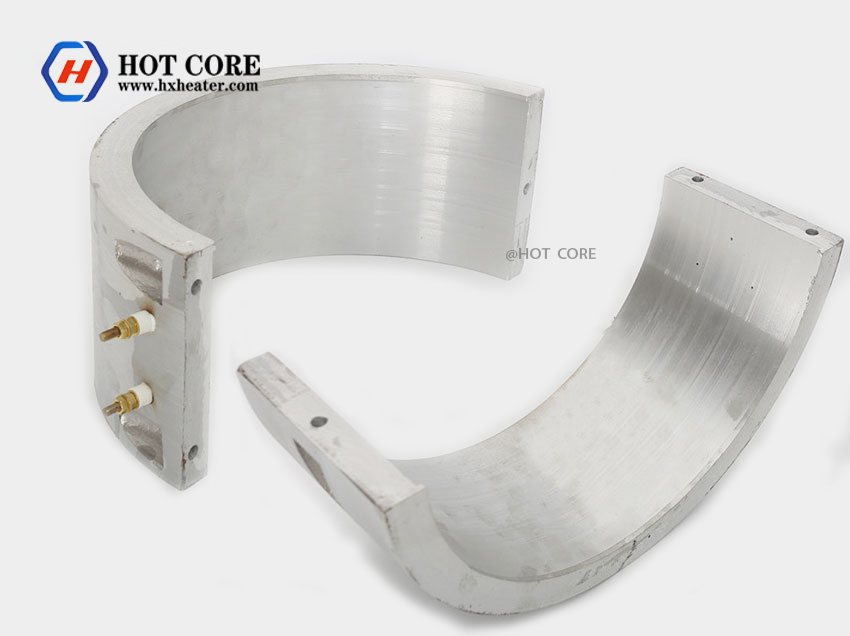

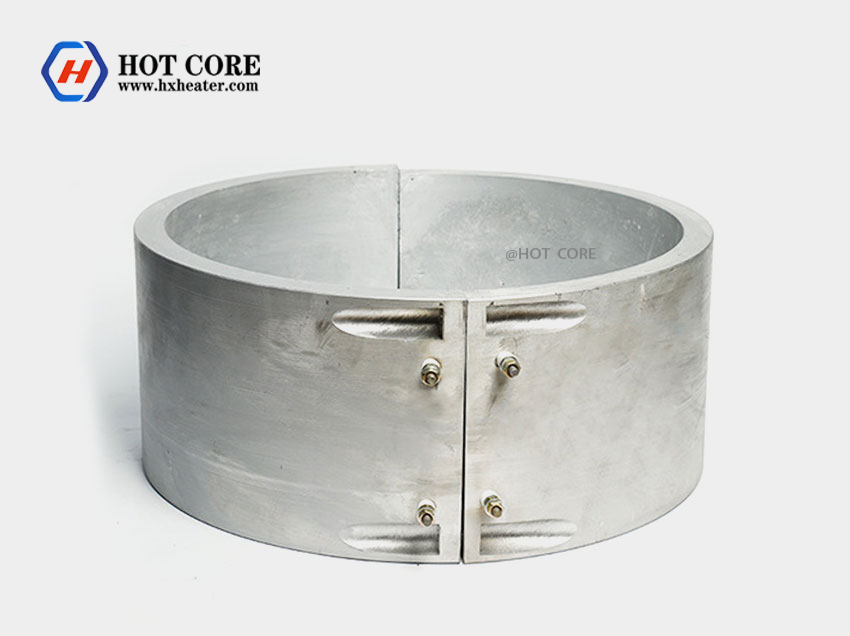

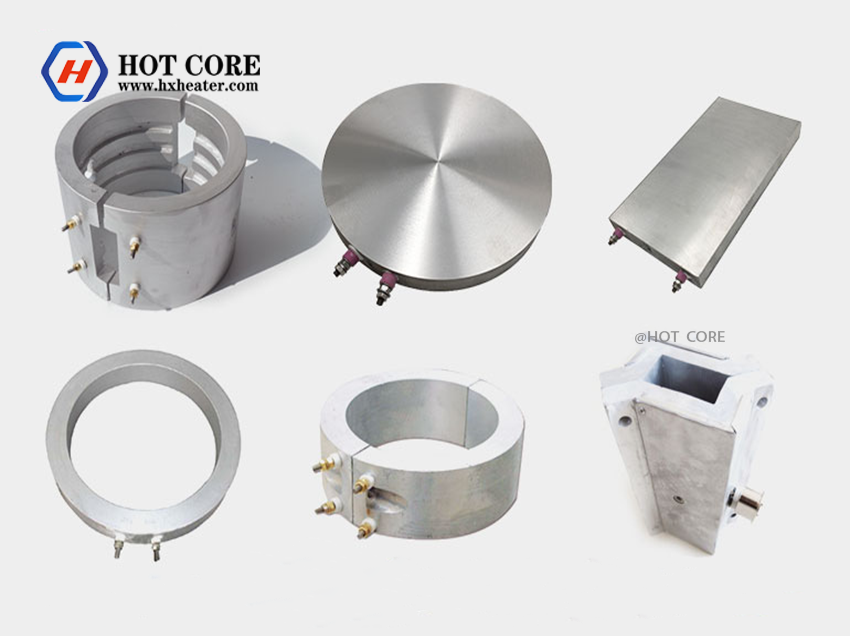

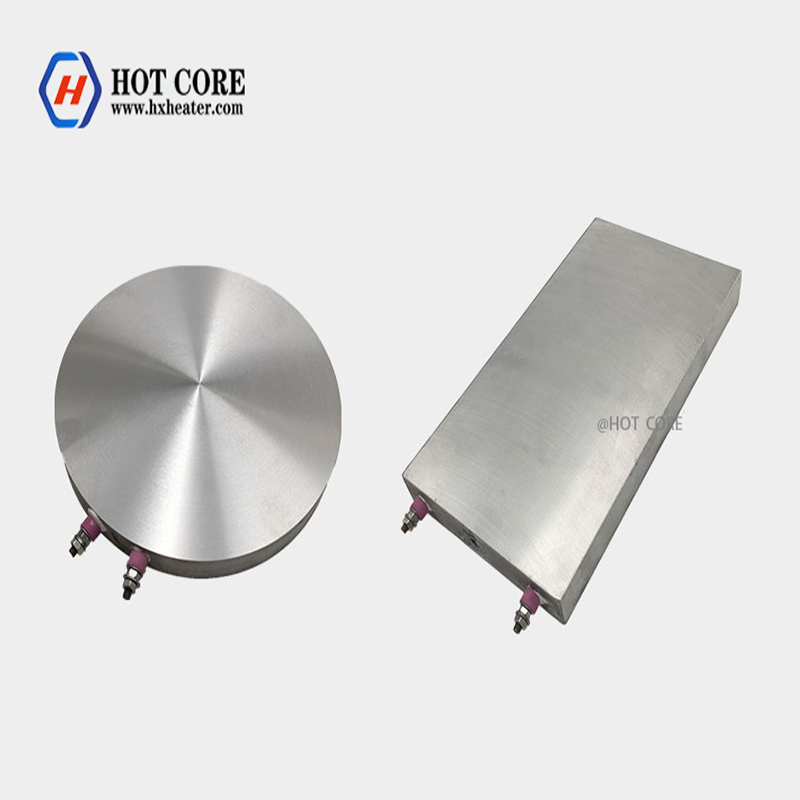

Cast Aluminum Heating plate
Cast Aluminum Heating plate made by HOT CORE Industry offers a high quality and efficient method of heating and controlling extruders, compression molding platens, heat sealers, vacuum forming platens. They are contamination and corrosion resistant and can withstand high temperature and pressures in harsh environments with years of trouble free service. Cast-in heaters Aluminum Heating plate can be casted into any shape and size needed, thus fully covering the part to be heated and virtually becoming the part itself. Most cast in heat cool bands are made to customer specifications.
특징:
High operating temperatures
Liquid cooling or air-cooling fins
Any size or shape available
Pressure casted ensure porosity free high density casting
Extremely ruled and resistant to damage
Precise and accurate control of temperature due to heat cool action
High watt density available
Size As required any size possible
전압 120, 240, 380, 415 volts
Max. Wattage Aluminum 5w/cm²
Bronze 7w/cm²
Terminations Leads, Terminal boxes, Screw
Max. Temperature Aluminum 371
Bronze 760
Iron 482
Options Holes, Grooves, Notches, Cutouts
응용:
1. Injection and Blow Moulding
2. Extruders
3. Moulds & Dies
4. 포장 기계
5. Medical equipments
6. Thermoforming equipment
To Order, Please specify:
1- Size of the Aluminum Plate
2- 전압 & 와트
3- Quantity
4- Any other specific requirements , please just specify.
핫 태그: cast aluminum heating plate, 중국, 제조업체, 공급업체, 공장, 모조리, 관습, 가격, 전기 같은, 고품질
