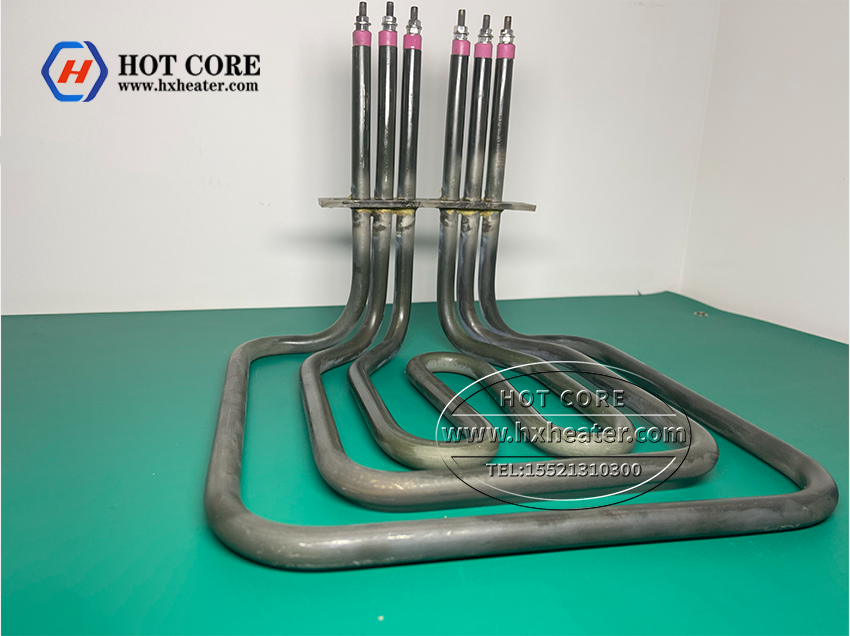

ステンレス鋼電気ディープオイルフライヤー暖房元チューブラーヒーター
HOT CORE in the production of various types of precision tubular heater for vacuum plating, nickel plating, gold plating, silver plating, chrome plating and other vacuum plating equipment. The vacuum electroplating tubular heater has various shapes, 高温抵抗, 耐摩耗性, 長いサービスライフ, high conduction efficiency, and the shell is made of high-performance seamless tube, which is widely used in the vacuum industry.
製品の説明
Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.
| 名前 | Water Immersion Boil Tubular Flange Heater |
| Heat intensity | Not exceeding 30W/cm2 (advisable) |
| 力 | Depends on the dimension |
| 絶縁 (when cold) | 5 Min Ohmios 500 Watts minimum |
| Power tolerance (w) | 5 % – 10 % |
| Working temperature | 750ºC max. |
| 認証 | ISO9001, CE |
| Delivery date | 7-15 working days after payment |
| 保証 | not have |
Tubular heating element are custom designed in a various shapes to as client’s requirements for direct immersion in liquids such as water, oils, 溶媒とプロセスソリューション, molten materials as well as air and gases. Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer. チューブラーヒーターは、任意のアプリケーションで使用できます. Straight tubular can be inserted in machined groves for conductive heat transfer and formed Tubular provides consistent heat in any type of special application. Its applications areas are: Plastic processing machineries ;Engineering Industry ;Packaging machinery ;Shoe making machineries ;Foundry Equipment ;Radiant Surface heating ;Hot Runner Mould Systems etc.
Adopting U shape tubular heating element ,according to design standard of different mediums,and power requirement to installed in the flange shell.Insert the electric element into the material which need to be heated ,immense heat will be produced when Heating elements works ,then conducted to heated medium for temperature increasing and meet the technology requirement.when the medium temperature reach the set value,control system can output power though PID calculation, according to the temperature sensor signal. Achieve temperature controlling for resistive load of heating element ,make medium temperature evenly and meet requirement.when the heating element exceed temperature or lower than position ,Interlock protection device can cut off heating power to avoid element broken,and extend using life.
| 1.We offer standard as well as customized models |
| 2.We offer different tube diameters like 6 mm, 8 mm, 11 mm, 12.5mm, 16mm & 18mm |
| 3.We offer different sheath materials. It can be availed in different materials like Incoloy 800, SS 304, SS 321, SS 316, 銅 & Titanium |
| 4.We offer various shapes as customer demand:immersion heater with flange or screw, explosion proof heater |
| 5.Various terminal options are available |
| 6.Various shapes and sizes are available |
| 7.Durable and has longer life |
仕様
1.Water heating pipe.
2.The pipe workpiece are including SUS304,SUS316,SUS321 INCOLOY840,Incoloy800
3.Pipe Diameter are 6.6mm, 8.0mm and 11mm
4.The surface load of the heating pipe is 13W/cm2.
Accept customizing development, When inquire please specify
(1). Type of Heater
(2). Wattage and Voltage
(3). Dia & length of the heater
(4). Drawing or Sample required for special configuratio
OUR ADVANTAGES:
1.Minimum order: 5PC
2.納期 : in stock 1-2days ,out stock 3-7days
3.More than 50 different sizes stock
4.Products are divided into two grades
A grades:use the The world’s top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.
B grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers
5.Provide OEM service.
6.Quality Assurance:Under normal conditions consistent with the design range ,
A grades 365days
B grades 180days
Q: あなたは会社またはメーカーを取引していますか ?
あ: 私たちは工場です
Q: 配達時間はどのくらいですか?
あ: 一般的にそうです 5-7 商品が在庫がある場合は就業日. またはそうです 10-15 商品が在庫がない場合は就業日, それは数量に応じてです.
Q: あなたの支払い条件は何ですか ?
あ: 支払い<= 1000USD, 100% あらかじめ. 支払い>= 10000USD, 50% 事前にt/t ,出荷前のバランス.
Q: 私のロゴを印刷しても大丈夫ですか？?
あ: はい. また、OEMもできます.
HOT CORE has been focused on the production of stainless steel electric deep oil fryer heating element tubular heaters since 1985, which is well-known as one of the leading manufacturers and suppliers of stainless steel electric deep oil fryer heating element tubular heaters. 過去数年間, 私たちは高品質で強い評判を所有していました, 信頼できるパフォーマンスと製品の強力な耐久性. あなたが興味を持っているべきです, please feel free to contact our factory.Hot Tags: stainless steel electric deep oil fryer heating element tubular heaters manufacturers, サプライヤー, 工場
