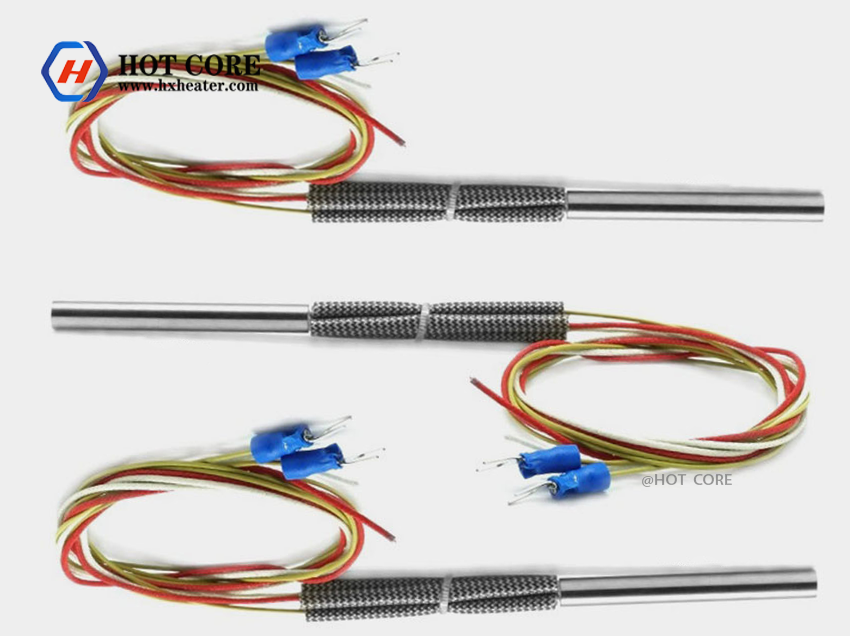

12/24V 36W Cartridge Heaters Fiberglass Insulation Industrial Heating Elements
Product Introduction
Cartridge heater are cylindrical electrical heating element.Mostly used for heating up solids such as injection presses heating plates or various tools,they can also be used for heating up water of gases under certain conditions.Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry,etc.They are also commonly found used in the chemical,electronics,medical equipment and packing industries.

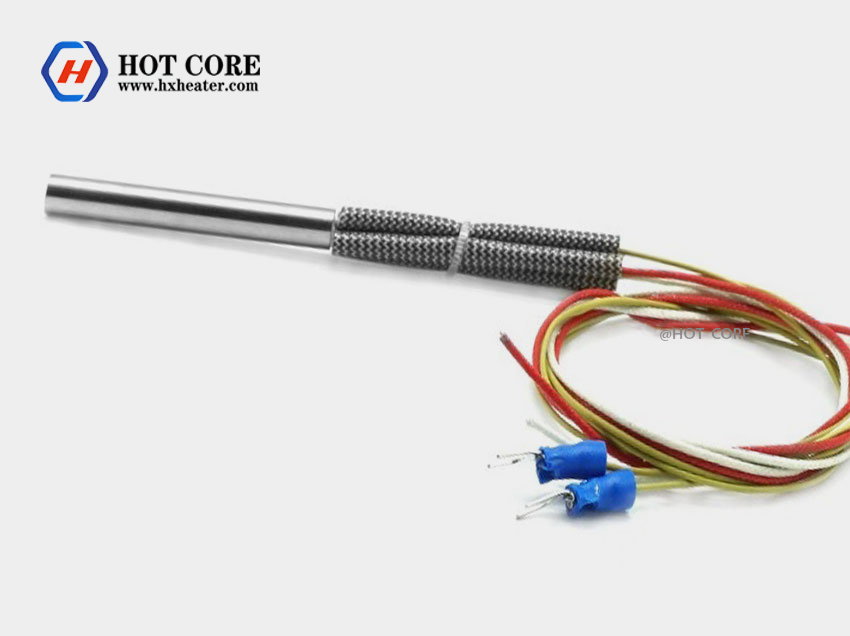

12/24V 36W Cartridge Heaters Fiberglass Insulation Industrial Heating Elements
Technical Data
Name 12/24V 36W Cartridge Heaters Fiberglass Insulation Industrial Heating Elements
直径 (mm) 2.5-35mm (Non-standard can be customized)
Length (mm) 10mm – 10000mm
Power Max 50W/cm2
Temperature Max 850 ℃
Available with a built in Thermocouple K or J type Thermocouple
Input voltage 12V-480V (non-standard can be customized)
Insulation resistance (500 [V-DC] unheated) ≥50MΩ
The maximum leakage current (253 [V-AC] unheated) ≤0.5mA
High voltage stability (温度) Rated voltage ≤24V -500V-DC> 24V 1500V-AC
Connecting Wires
a. glass fiber insulation nickel wire (温度 450 度 -750 度)
b. Crimp Teflon line (温度 250 度)
c. Crimp silicon insulated wire (温度 200 度)
Material Specification
チューブ材質: Seamless SS304, SS321, SS316L, SS310S, Incoloy 600/800/840 等;
MGO Rod: Imported from Japan Tateho, USA OTC;
MGO Powder: Imported from UK UCM, Japan Tateho;
Resistance Heating Wire: Sweden Kanthal, Germany BGH, NiCr8020;
High Temperature Wire: Fiberglass wire, Pure Nickel Core wire, Telfon wire, Silicone wire;
Terminal Pin: Nickel-manganese alloy, pure nickel wire.
Cartridge Heater Type as Follows
Cartridge Heaters Applications
Injection moulding – Internal heating of nozzles
Printing Heads – 3D Printers
Sealing Machines
Laminating machines
Hot runner systems – Heating of manifolds
Packaging industry – Heating of cutting bars
Laboratories – Heating of analytical equipment
Medical – Dialysis, Blood Analyzer, Blood/Fluid Warmer, Temperature Therapy
Telecommunications – Deicing, Enclosure Heater
Transportation – Oil/Block Heater, Coffee Pot Heaters
Food Service – Steamers, Dish Washers
Industrial – Glass Bending Machine, Hole Punches
PCB Equipment, Smokeless barbecue furnace etc.
Our Advantages :
1. We can accept multiple specifications order(no matter how much the quantity is )
2. Product diversification, diverse specifications and material (Imported from Foreign )
3. Cartridge heaters can be made from 2.5mm – 35mm diameter
4. High Quality High Power Cartridge Heater (Max density: 50 w/cm2 )
5. Advanced equipment: X-ray machine, laser welding machine, CNC winding machine etc.
6. TIG welding, OTC(USA) MGO rod, UCM(UK) MGO powder, BJH(ドイツ) and Kanthel( Sweden) resistance wire
7. OEM service, Custom-Made service
