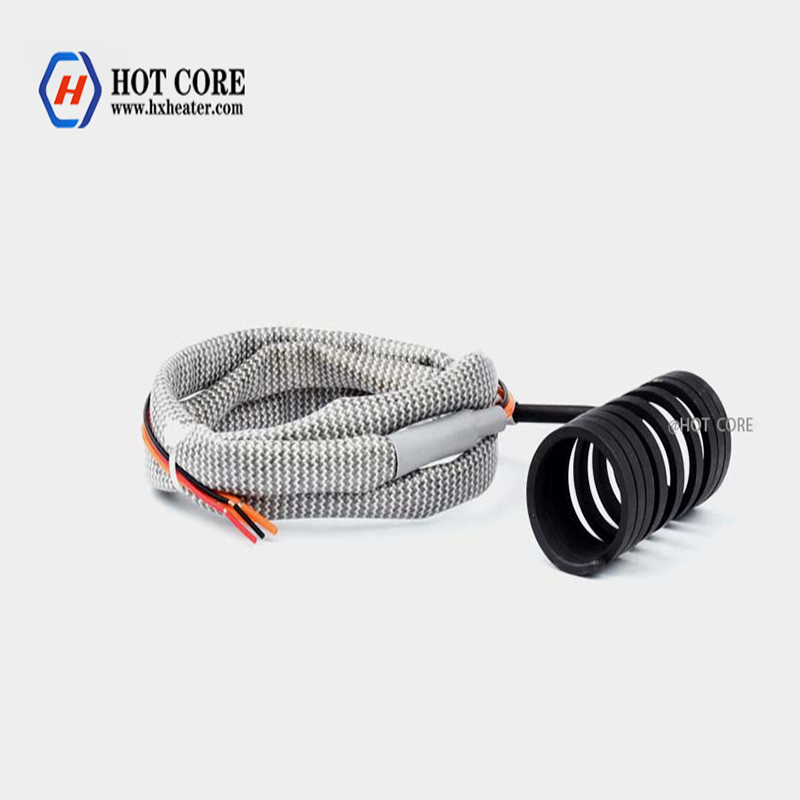

Coil heater with thermocouple custom
For applications where there is not enough room for a separate temperature sensor, any coil heater can provide a built-in thermocouple.
Our spiral heating elements can be supplied with reflector tubes or castings for increased robustness and better heat transfer, and can be used at various terminal exit angles.
Optional accessories
With or without integrated thermocouple
(grounded or ungrounded) fe-cuni or nicr-ni available
A reinforced tube covering an unheated area to prevent bending or fracture damage
Reflection tube:
The biggest increase.
Surface load & provides mechanical load protection
High quality clamping belt:
Improve heat transfer, increase maximum.
Surface load & provides mechanical load protection
Other types consider technical data as required
Standard details
Coil heater cast in brass with stainless steel casing
Wall thickness 4.5 に 5.5 mm, depending on integrated coil heater
内径, minimum and maximum.
See product specification for length and wall thickness.
電圧: 230 V
Exit axial, radial or tangent
Connection :1000mm ptfe insulated wire, grounding and glass wire protective cover
