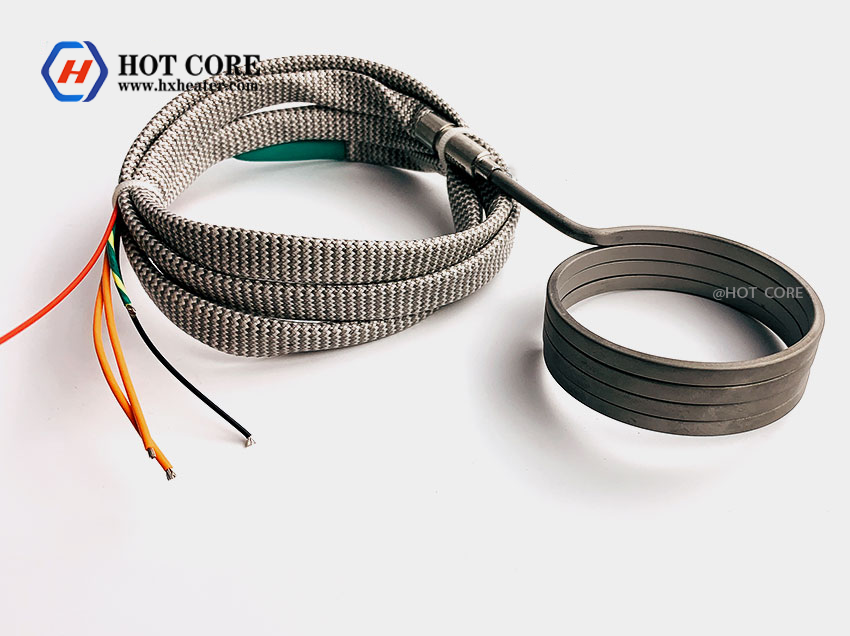

Coil heater for plastic machine

Coil heater for plastic machine Hot Core Heater Coil Heaters are manufactured in round, 四角& rectangular section to guarantee the maximum thermal exchange keeping an excellent efficiency. Most important applications are Nozzles for Hot Runner Systems, Hot Melting Nozzles, Manifolds etc. These Heaters can be manufactured with built-in thermocouple J or K type.

製品詳細:

Coil heater for plastic machine

We offer the best hot runner coil heater that is made of ni-cr resistance wire, built in ni-cr steel tube filled with MGO powder and compact for fast and effective heat transfer.
Our hot runner coil heater is annealed to obtain ductility that can be bent into any shape.
The application
Moulds and dies
The manifold
Hot runner nozzles and spruce shrubs
Packaging machinery
The manifold
Injection molding machine nozzle

specification
1. Maximum sheath temperature :700℃
2. 電圧 :12 v ~ 380 v
3. 力 :70 w ~ 1000 w
4. Cross-sectional area :3X3, 4.2X2.2, 4X2, 4×2.7, 4×2.5 3.3 X 3.3 3.5 X 3.5 4X 4 2.2X1.3
5. Sheath: nylon, metal woven, glass fiber, silicon rubber, kevlar

How to purchase Industrial heater & コイルヒーター :
1.inner diameter
2.Outside diameter
3.Length
4.Cable length
5.電圧
6.ワット数



私たちに書いてください
