真鍮ノズルヒーター
1.Product Introduction
Superbheater band nozzle heaters are available in mica, ceramic, micro tubular and sealed type. Band nozzle heaters with inbuilt thermocouple are also available. We suggest micro tubular nozzle heater with inner brass bushing and outer SS strap for high temperature applications.
あ. Mica Nozzle Band Heaters
Sheath material brass.
Fiberglass or Teflon insulated SS mixed wire terminals.
b. Plastic proof Nozzle Band Heaters
Plastic proof.
Sheathing material high grade steel or brass.
Metal braided Fiberglas wire terminals.
C. Leaf proof Nozzle Band Heaters
Plastic proof.
Sheathing material high grade steel.
絶縁 – high grade mineral insulation.
Metal braided fiberglass wire terminals.
2. 仕様
電圧：12~440V
Electric Heating：Nicr 80/20 Wire
バンドヒーター：Sealed Heater
ワット数：1600W
Industrial Application：Injection Molding
絶縁：Mica Insulation
仕様：CE, ISO and ROHS
Our products are non-standard products, which can be customized. Parameters are required to place an order !

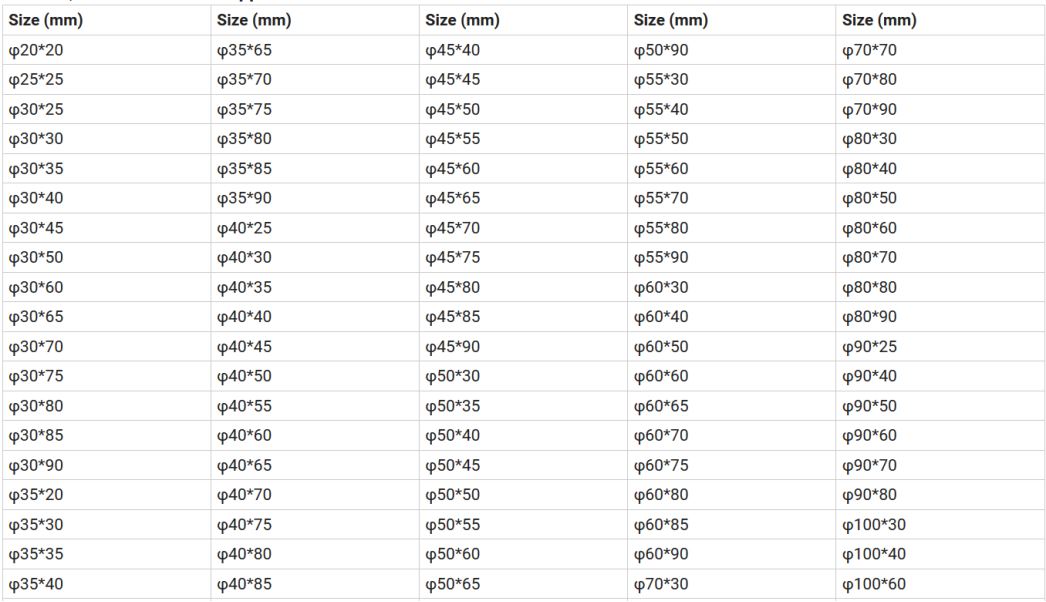

直径 * length：
3. 製品機能

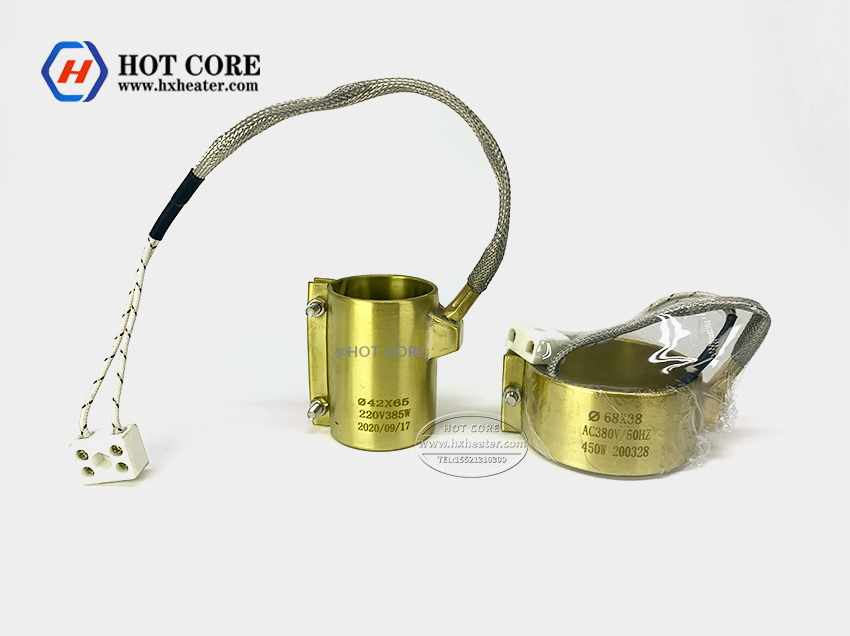

(1) Sealed band heater in brass, with folded ends
(2) Band heater connection, waterproof technology
(3) Electric insulation by mica plate
(4)connection:nickel core, fiberglass insulated + earth wire; protected by a galvanized steel braid
(5) マックス. watt density : 5 w/cm² (Wattage tolerance: +5% -10%)
(6) 直径: 25 to 150mm
(7) Height: 25 to 70mm
(8) マックス. operating temperature over the surface of the heater: 340 degree Celsius, depending on working conditions.
4. Why choose us?
低MOQ: It can meet your promotional business very well.
OEMを受け入れました : We can produce any your design as long as you provide us the drawing.
Good Service : We treat clients as friend.
Good Quality :We have strict quality control system .Good reputation in the foreigner market
Fast & Cheap Delivery: We are the manufacturer, have our own factory, direct delivery from the factory.
7. よくある質問
Q1: あなたは会社またはメーカーを取引していますか ?
あ: 私たちは工場です.
第2四半期: 配達時間はどのくらいですか?
あ: 一般的にそうです 5-7 days if the goods are in stock. またはそうです 10-15 days if the goods are not in stock, それは数量に応じてです.
Q3: あなたの支払い条件は何ですか ?
あ: 支払い<= 1000USD, 100% あらかじめ. 支払い>= 10000USD, 50% 事前にt/t ,出荷前のバランス.
Q4: 私のロゴを印刷しても大丈夫ですか？?
あ: はい. また、OEMもできます.
Q5: Do you offer guarantee?
あ: はい, we offer 1 year warranty to our products.
