真鍮のホットランナーヒーター
PRODUCT DESCRIPTION

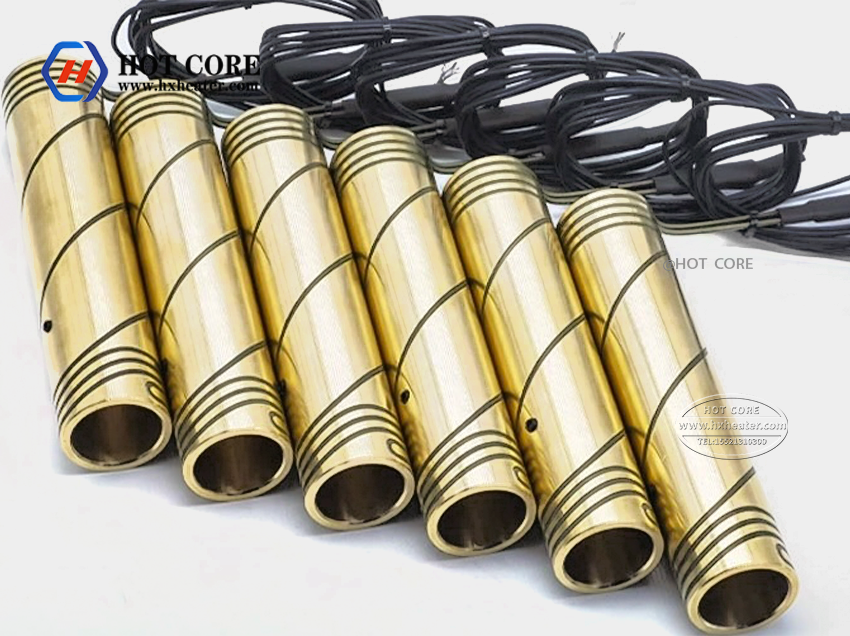

Superb Heater Brass hot runner coil heater according with different sizes (the sprue bush or nozzle)
design and manufacturing, the sleeve is made of high quality stainless steel or copper, inner sleeve,
outer there are various winding section (ラウンド, square or flat) heating coil, temperature uniformity,
thermal inertia characteristics, can be integrated with the K type, J type or E type control temperature thermocpuple.
PICTURE DISPLAY
PICTURE DISPLAY
Minimum diameter Φ 10mm
Voltage 12V- 400V
Wattage tolerance ±10%
Material SS304/SS321/SS310/SS316 (カスタマイズされた)
Sleeve material Brass
Resistance ±10%
Dielectric strength 600V 800V 1000V
絶縁(cold 1000V) ＞10 MΩ
漏れ電流(cold) ＜0.5mA
Max power density 10W/cm²
Heating length tolerance ±0.05mm
Maximum working temperature allowed on sheath Max.750℃ / 1380°F
Build-in Thermocouple Type K/ J/ E
Standard supply 1000mm PTEE insulated nickel lead wire
Material of lead wire:グラスファイバー, Kevlar, Telfon, Silicone Rubber, Metal braided, SUS armoured.
