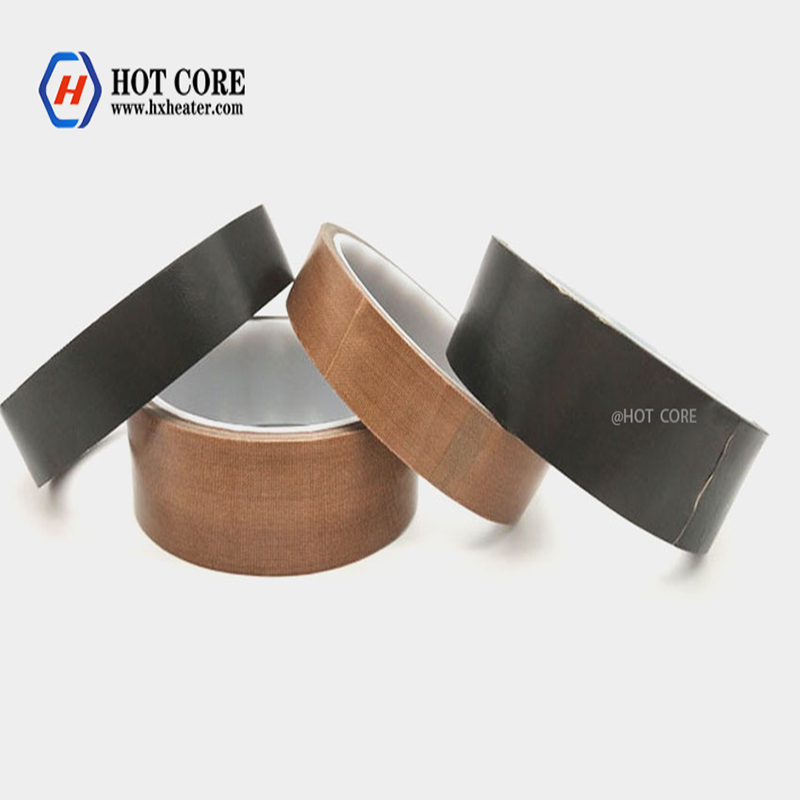

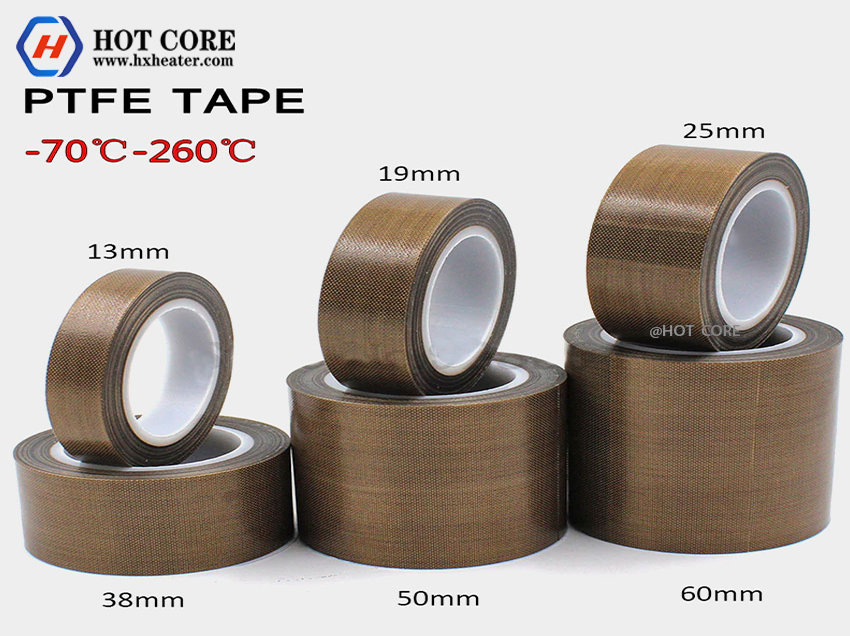

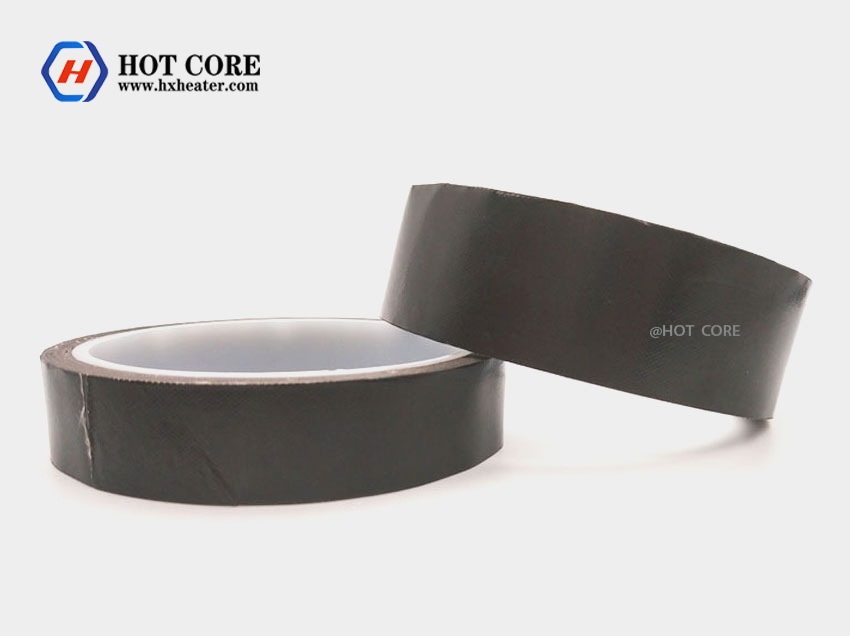

Cinta de teflón con núcleo caliente Capas de cinta de fibra de vidrio
El PTFE es un material de propiedades destacables; antiadherente, sin fricción, autolubricante, no mojar, ininflamable, no frágil, no tóxico, resistente a las condiciones atmosféricas, resistente al crecimiento de hongos y resistente a todos los productos químicos (excepto metales alcalinos fundidos y flúor a temperaturas y presiones elevadas). Sus propiedades eléctricas son igualmente sobresalientes.. All properties are maintained over a wide working temperature range of -200 ºC. a + 350 ºC teflon coated fiberglass cloth teflon coated fiberglass cloth teflon coated fiberglass cloth

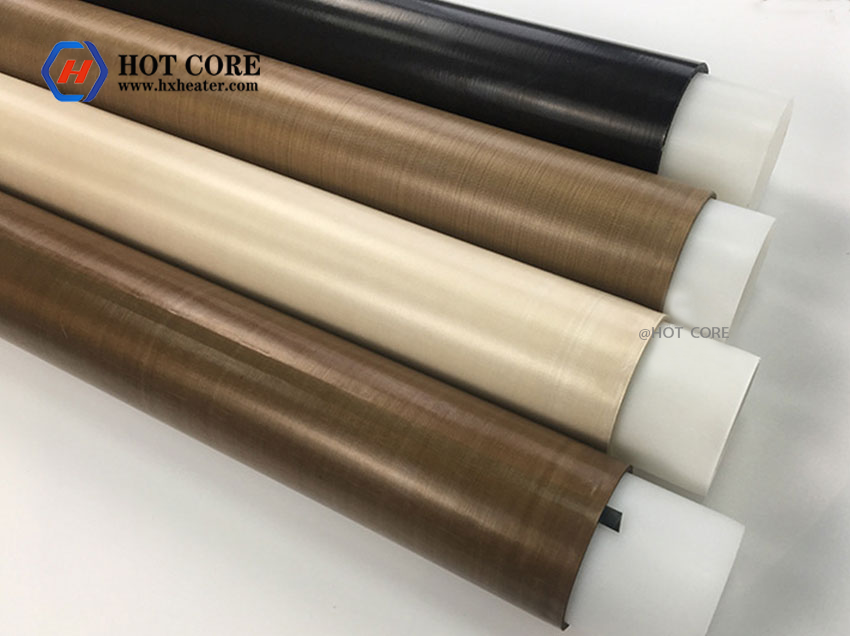

Name teflon fiberglass cloth
Material Fiberglass coated with PTFE
Mini order quantity 100 square meters
Supply ability 100000 square meters per month
Packing details Plastic film plus export CTN to export PTFE coated fiberglass cloth
Color Black , beige, light brown,
Thickness 0.08mm 0.10mm 0.12mm 0.18mm 0.20mm;se puede personalizar
Width 1250,1500mm can be customized
Temperature resistance -70℃~ 260℃
Other Non stick, reusable, reversible,100%PFOA free, washable, heat-resistant, eco-friendly
Features for teflon coated fiberglass cloth
1.Stable dimension, high intensity, elongation coefficient less 5%.
2.Good temperature resistance, 24 hours working temperature -60°C~300°C.
3.Low coefficient of friction and dielectric constant, good insulating ability.
4.Non stick, easy to clear stains and adhesives on the surface.
5. Good chemical resistance, it can resist most of chemical medicines, ácidos, alkalis, and salt, it is fireproofm, anti aging.
Item No. Color Thickness±0.02mm weight of Fiberglass(g/m2)±3% Total weight (g/m2)±3% Tensile strength (n/5cm)±5% Width (metro) Temperatura(℃)
wrap weft
9008AJ Brown 0.07 48 150 650 550 1.2 -70-260
9008BJ Black 0.07 48 160 460 420 1.2 -70-260
9008J White 0.07 48 150 610 430 1.2 -70-260
9013AJ Brown 0.125 105 250 1200 1100 1.2 -70-260
9013BJ Black 0.125 105 260 1050 850 1.2 -70-260
9013J White 0.125 105 250 990 900 1.2 -70-260
9015AJ Brown 0.14 105 300 1350 1250 1.2 -70-260
9018AJ Brown 0.17 165 350 1750 1550 1.2 -70-26
Applications of PTFE coated fabrics:
PTFE coated fabrics are used in a wide verity of industries and applications.
• Packaging – PTFE adhesive tapes.
• Printing – Open weave mesh belting.
• Textiles – Closed weave and mesh belting.
• UPVC window welding – Non and self adhesive materials.
High Temperature Resistant Teflon Coated Fiberglass Cloth , Resistant Teflon Coated Fiberglass Cloth
