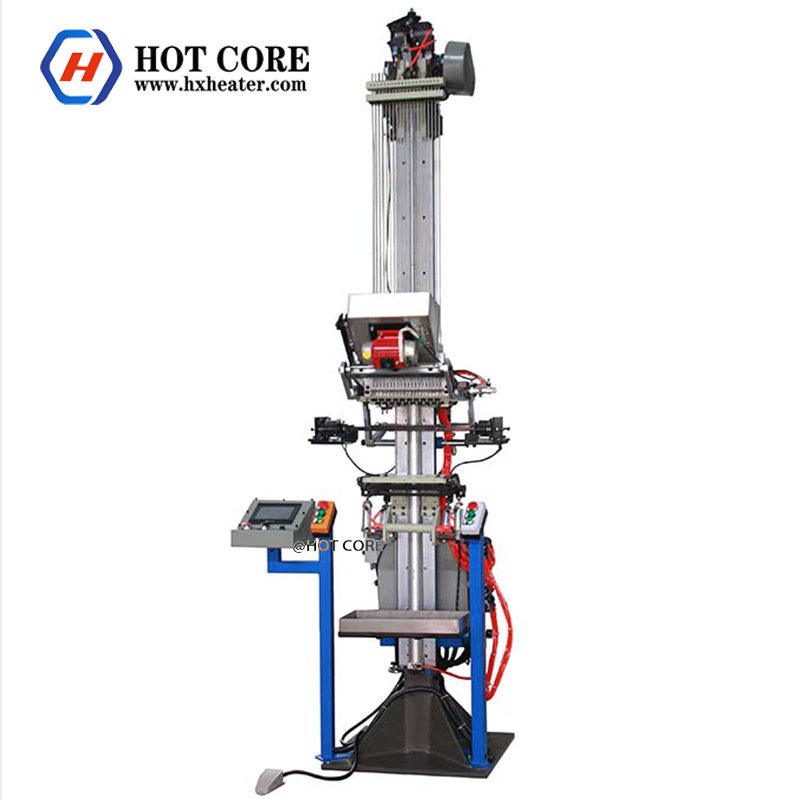

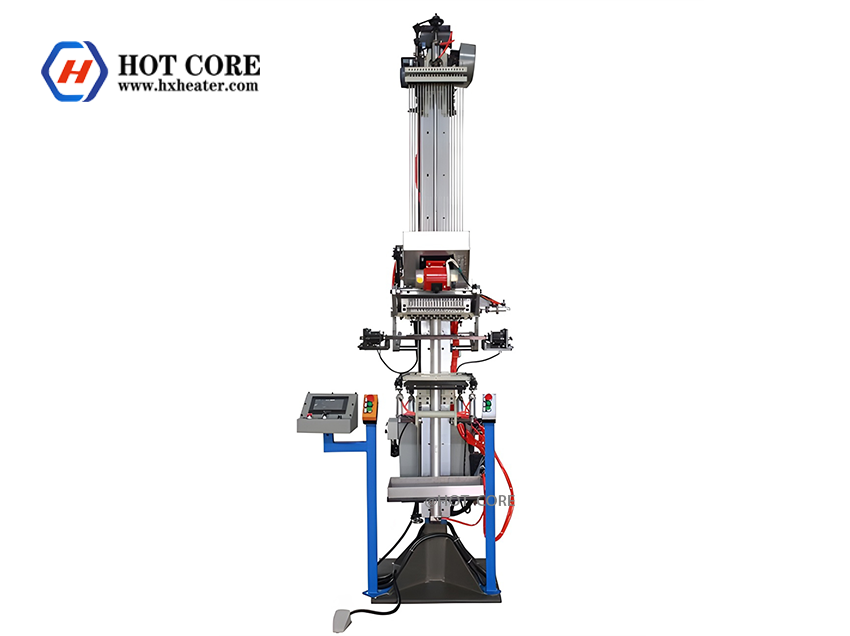

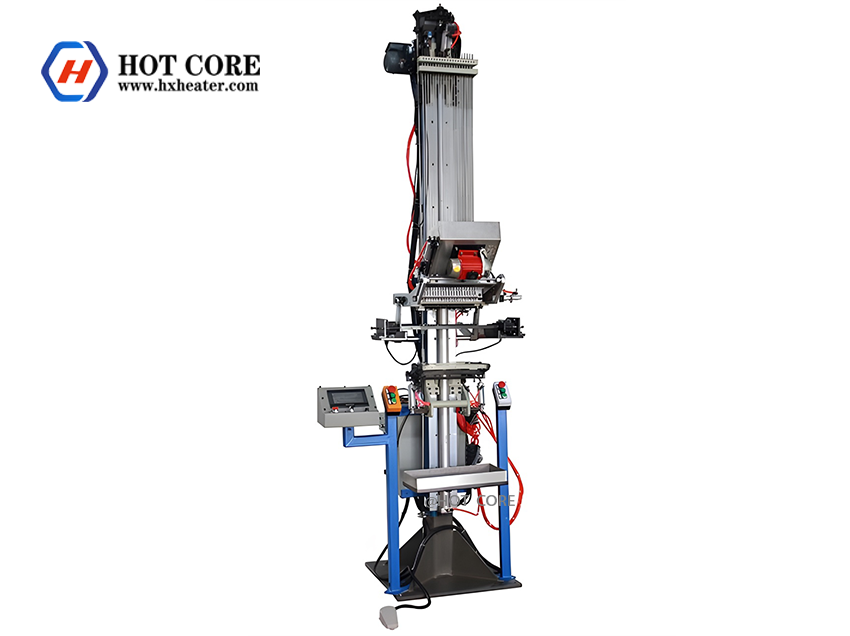

Hot core Heating Element Filling Machine
Descripción
Parámetros técnicos
Producto: Heating element filling machine
Número: Heating element filling machine TLD-24
Parameters of heating element filling machine:
Gas station: 24 PCS
Maximum diameter of fueling pipe: 12.7milímetros
Filling length: 150milímetros–1000milímetros
Voltage and power: 380W 220V 600W
fuente de aire: 0.6MPa clean compressed air
Filling speed: 6000-8000 PCS can be achieved in 8 horas.
Pipe size: a short pipe with a large diameter.
Heating element filling machine:
The heating element filling machine is an automatic filling machine. At the same time it is also a one-way machine, that is, a single-layer catheter.
A mandrel is installed inside the pipeline to position the heating wire module.
A linear cutting and binding head weld are installed on the top of the pipe; it is connected to the hole in the pipe. Magnesium powder flows downward from the tail of the duct.
The main advantages of the machine:
1) Large capacity
2) Accelerate the filling speed, about 2.15g/cm3.
3) Simple operation
4) Using PLC touch screen control, the filling length will be more correct.
Solve machine problems
5) A geared motor is used to drive the ascent of the duct mechanism, which is more stable than the gas-liquid steering mechanism.
