Baldosa calefactora de cerámica

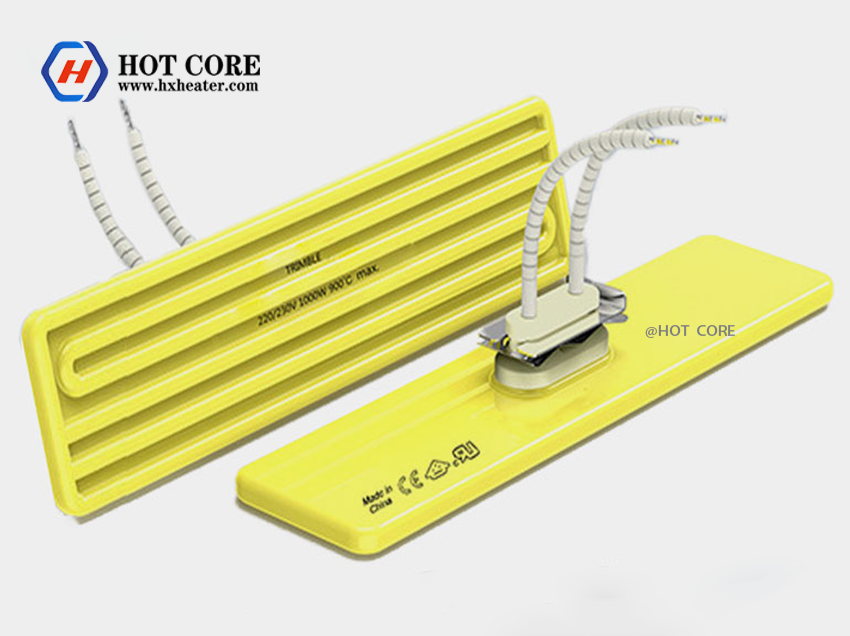

Ceramic heating plate element structure: It is the resistance wire Cr20Ni80 for heating, ceramic insulation and thermal conductivity.Resistance wires are cast into ceramics and then fired at high temperatures. Embedded ceramic far infrared radiation element is made of glaze layer with high emissivity and ceramic substrate with good thermal shock performance.

Detalles del producto:

Baldosa calefactora de cerámica

High-quality heating wires are sintered in one time, and their compositions are as follows:
1. Matrix: composed of ceramic materials with good thermal shock performance;
2. Heat: it is made of high-quality nickel chromium alloy wire.
3. Glaze layer: it is composed of metal oxide materials with good external radiation performance, and an appropriate amount of additives is added to improve the radiation intensity and enhance the adaptability of the blank glaze.



Ceramic electric heating board components
It has a wide range of USES, such as food, medical, electronics, plástica, wire and cable, automobile packaging and other industries, used for baking or temperature setting and other USES.
Características: high radiant rate, good overall performance, uniform heating, high insulation temperature, clean and sanitary, larga vida útil, corrosion resistance, oxidation resistance, etc..
Especificación:
1. Material: Ceramic
2. Dimensión: 240x60mm 122X 122mm etc.
3. Fuerza: 220v/750W
4. Color: White or Black
